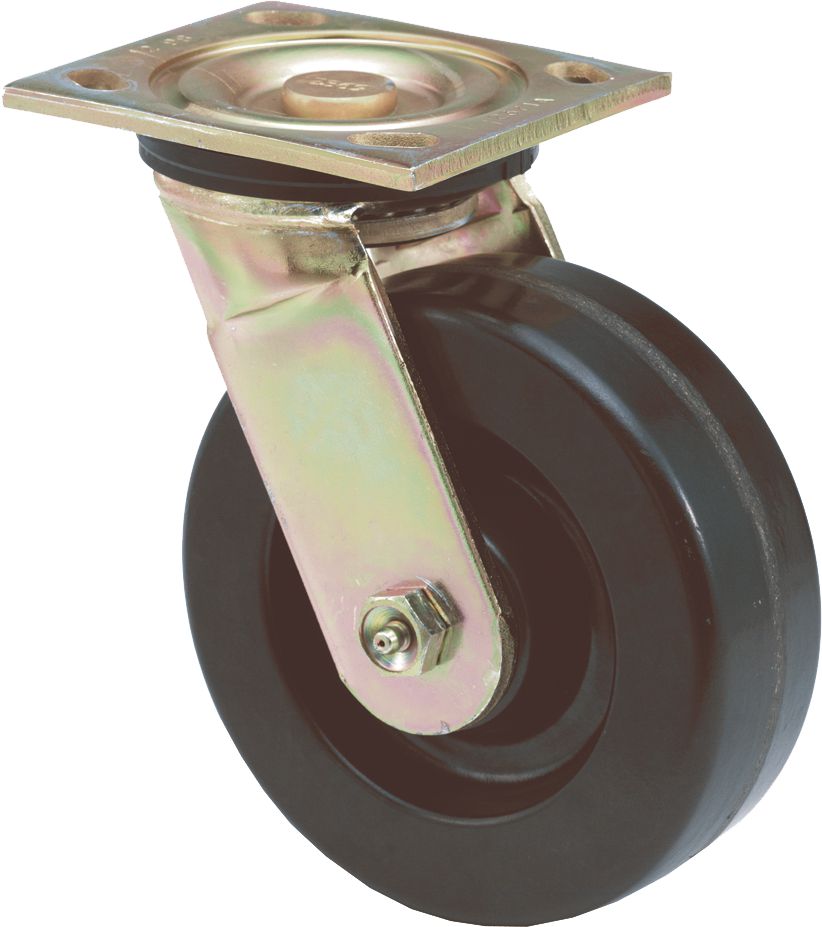

Caster, Swivel with Brake, Soft Rubber Wheel, 6" Diameter, 1-3/8" Wheel Width, 280 lb Load Rating
(Pack of
1)
SKU:1588636 Item#: 1588636
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-57
Frequently Bought Together
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Brake Kit For Institutional Casters 5" Wheel
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 28" Long
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 35" Long
Couldn't load pickup availability
Tuff-Edge® Web Sling, Polyester, Silver, 4' Length
Couldn't load pickup availability
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Lite-Med Duty 3-1/2 x 1-1/4" Wheel
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588636 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Soft Rubber |
| Wheel Diameter | 6 " |
| Wheel Width | 1-3/8 " |
| Overall Height | 7-1/16 " |
| Load Rating | 280 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 4.235 lb |
