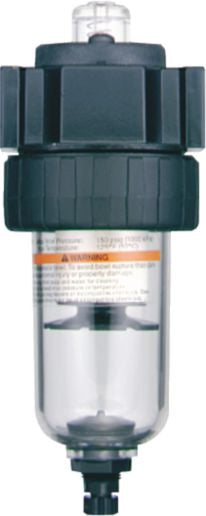

Coalescing Filter, 1/8" Body, 1/4-18 Female NPT, 1oz, 6ft³/min, 150PSI
(Pack of
1)
SKU:55091 Item#: 55091
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Differential pressure indicator standard• Solid all-metal body and clear polycarbonate bowl• Coalescing Filters are designed to be immediately preceded by a standard filter
Highly efficient borosilicate media removes 99.7% of oil, water and submicron particles – ISO Class I (ISO 8573-1). A solid performer in spray painting and pneumatic instrumentation applications.
Couldn't load pickup availability
Catalog page#: 8-171
Frequently Bought Together
Port Block Connector 3/4-14 Female NPT
Couldn't load pickup availability
GLSS300
Couldn't load pickup availability
GL120
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Hose Mender Brass 3/4 x 3/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Differential pressure indicator standard• Solid all-metal body and clear polycarbonate bowl• Coalescing Filters are designed to be immediately preceded by a standard filter
Highly efficient borosilicate media removes 99.7% of oil, water and submicron particles – ISO Class I (ISO 8573-1). A solid performer in spray painting and pneumatic instrumentation applications.
Technical Specifications
| Item#: | 55091 |
|---|---|
| Description | Coalescing Filter |
| Body Size | 1/8 " |
| Maximum Flow | 6 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 1/4-18 |
| Bowl Capacity | 1 Oz. |
| Replacement Polycarbonate Bowl | 56953* |
| Replacement Metal Bowl | 56954 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 0.36 lb |
