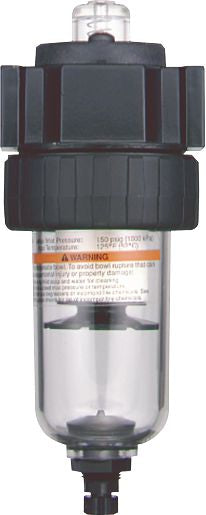

Coalescing Filter, 3/8" Body, 3/8-18 Female NPT, 4.4oz, 16ft³/min, 150PSI
(Pack of
1)
SKU:55093 Item#: 55093
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Differential pressure indicator standard• Solid all-metal body and clear polycarbonate bowl• Coalescing Filters are designed to be immediately preceded by a standard filter
Highly efficient borosilicate media removes 99.7% of oil, water and submicron particles – ISO Class I (ISO 8573-1). A solid performer in spray painting and pneumatic instrumentation applications.
Couldn't load pickup availability
Catalog page#: 8-171
Frequently Bought Together
Replacement Air Line Filter Element 5 Micron
Couldn't load pickup availability
Filter/Regulator Combination 1/2-14 Female NPT
Couldn't load pickup availability
GL135
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Hose Barb Brass 1/2" x 3/8-18
Couldn't load pickup availability
Water Line Coupling Brass 3/4"
Couldn't load pickup availability
Hose End Brass 1/4 x 1/4"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Differential pressure indicator standard• Solid all-metal body and clear polycarbonate bowl• Coalescing Filters are designed to be immediately preceded by a standard filter
Highly efficient borosilicate media removes 99.7% of oil, water and submicron particles – ISO Class I (ISO 8573-1). A solid performer in spray painting and pneumatic instrumentation applications.
Technical Specifications
| Item#: | 55093 |
|---|---|
| Description | Coalescing Filter |
| Body Size | 3/8 " |
| Maximum Flow | 16 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 3/8-18 |
| Bowl Capacity | 4.4 Oz. |
| Replacement Polycarbonate Bowl | 56955* |
| Replacement Metal Bowl | 56956 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 1.87 lb |
