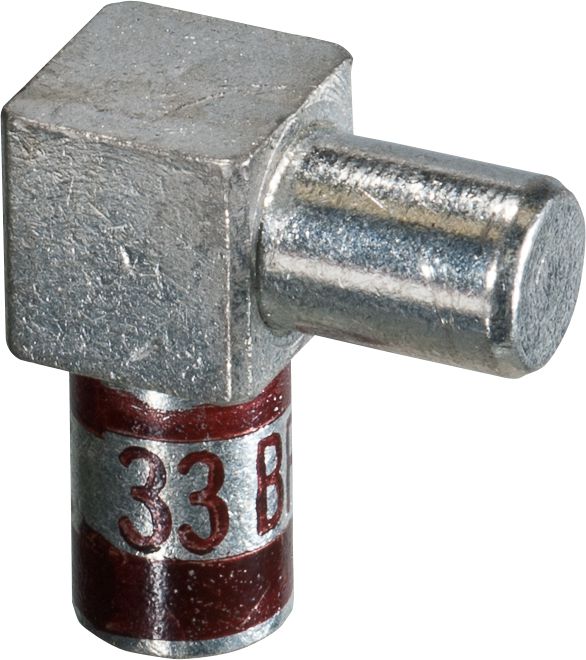

Color Coded Motor Pigtail Connector, 2 AWG, Male, Copper, Tin Plate, Brown, 2 Body Size
(Pack of
5)
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 8 AWG
Couldn't load pickup availability
Standard One-Hole Lug 3/0 AWG Orange
Couldn't load pickup availability
Standard One-Hole Lug 3/0 AWG Orange
Couldn't load pickup availability
Extendable Handle Ratchet 3/8 Drive
Couldn't load pickup availability
M12™ FUEL™ HACKZALL® Reciprocating Saw Kit
Couldn't load pickup availability
Flex-Guard Braided Sleeving 3/8"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94384 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 2 AWG |
| Color | Brown |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.39 lb |
