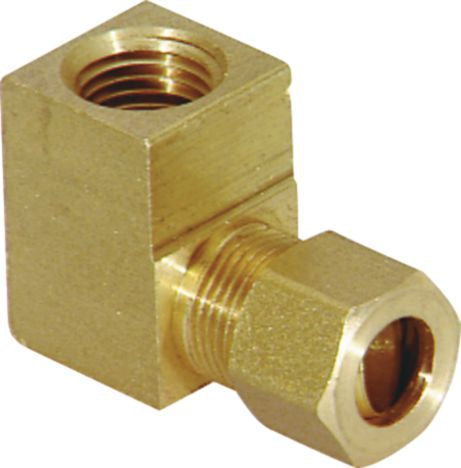

Compression Elbow, Brass, 90°, 1/8-27 x 1/4", Female NPT x Tube, 500PSI
(Pack of
5)
SKU:5096 Item#: 5096
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
Frequently Bought Together
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
Item#: 96818
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm
Item#: 98209
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Item#: 86727
Couldn't load pickup availability
Master Series Penlight Flashlight
Item#: 1635602
Couldn't load pickup availability
Product Description
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)Technical Specifications
| Item#: | 5096 |
|---|---|
| Fitting Type | Compression |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Female NPT x Tube |
| Fitting Dimension A | 1/8-27 |
| Fitting Dimension B | 1/4 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.34 lb |
