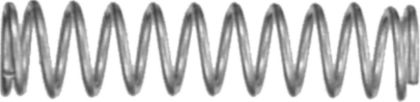

Compression Spring, Steel, 21 Wire Gauge, 1/4" ID, 5/16" OD, 1-3/8" Length, 12 Coils, 5lbs Maximum Work Load
(Pack of 10)

SKU:89624 Item#: 89624

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Compression Spring 3/8 x 2-3/4"

Compression Spring 1/2 x 1-3/8"

Compression Spring 1/2 x 1-5/8"

Universal Sorbent Pad

Universal Three-Ply Heavyweight Sorbent Pads

Automotive Refinishing Tape 1" x 60 Yards

Premium Nitrile Gloves, Black, 6 Mil, 2X-Large, 100/Box

Automotive Refinishing Tape 2" x 60 Yards

500G Tsunami Grip® Light Coated Gloves

Flat Washer Grade 12 Thru-Hardened Steel M8

IFI 100/107 Top Locknut Grade C 5/8-11

SAE Flat Washer Thru-Hardened Steel 1/4"

Friction Tape 3/4" x 60'

Valve Action® Permanent Paint Marker Green

Valve Action® Permanent Paint Marker Yellow

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89624
Type	Compression Spring
O.D.	5/16 "
Length	1-3/8 "
I.D.	1/4 "
Wire Diameter	0.032 "
Wire Gauge	21
Number of Coils	12
Rate	6.6 lb./in.
Maximum Work Load	5 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.03 lb
