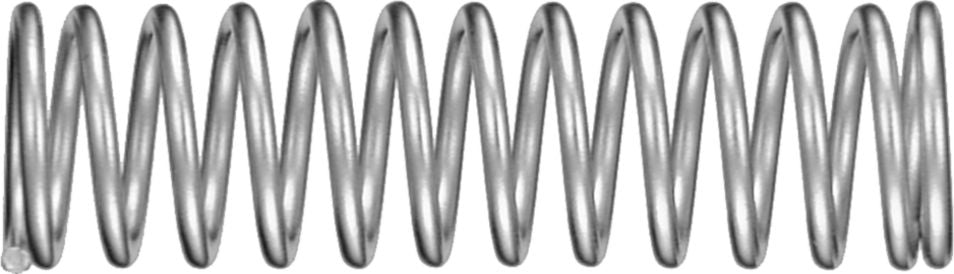

Compression Spring, Steel, 13 Wire Gauge, 11/16" ID, 7/8" OD, 3" Length, 13 Coils, 35lbs Maximum Work Load
(Pack of 2)

SKU:89609 Item#: 89609

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

Auto-Darkening Panoramic View Welding Helmet

Item#: EG70828000

Round Tag Brass 1-1/2"

Round Tag Brass 1"

Baseball Style Bump Cap with HDPE Protective Liner and Adjustable Back

Ear Plug Dispenser

500G Tsunami Grip® Light Coated Gloves

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Butt Connector 22 to 18 AWG Red

SAE Flat Washer Thru-Hardened Steel 3/8"

WypAll X60 Teri Wiper 12.5 x 13.4"

WypAll X80 ShopPro Towel 9.1 x 16.8"

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Extension Spring 7/16 x 4-1/2"

Compression Spring 1/4 x 1-1/2"

Compression Spring 5/16 x 1-1/2"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89609
Type	Compression Spring
O.D.	7/8 "
Length	3 "
I.D.	11/16 "
Wire Diameter	0.092 "
Wire Gauge	13
Number of Coils	13
Rate	19 lb./in.
Maximum Work Load	35 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.12 lb
