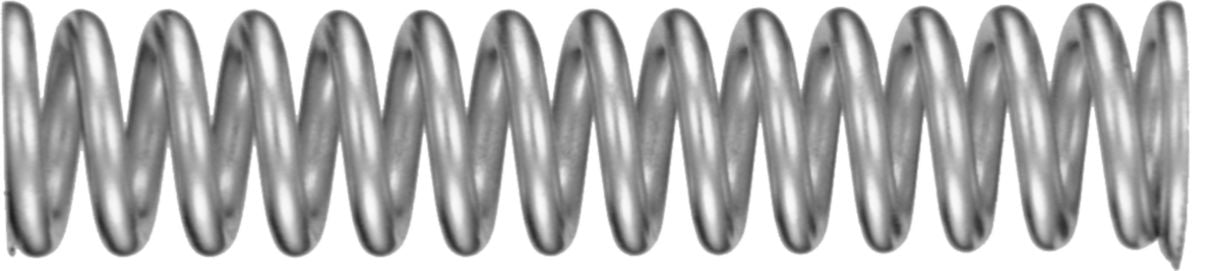

Compression Spring 17/32 x 3-3/4"
(Pack of 2.0)

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-38

Frequently Bought Together

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Item#: DA6152

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Bullseye #12 Bottle with Trigger Sprayer 22fl.oz

Item#: DD1001

Automotive Refinishing Tape 3/4" x 60 Yards

Item#: 50114

Round Tag Brass 1-3/8"

Item#: 97449

Compression and Extension Spring Kit 76Pcs

Item#: LP624

Compression Spring Kit 166Pcs

Item#: LP626BL

Compression Spring 9/32 x 1-3/4"

Item#: 89571

Product Description

Technical Specifications

Item#:	89596
Type	Compression Spring
O.D.	13/16 "
Length	3-3/4 "
I.D.	17/32 "
Wire Diameter	0.135 "
Wire Gauge	10
Number of Coils	15
Rate	115 lb./in.
Maximum Work Load	130 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.29 lb
