Home Facility + Site Compression Spring 3/8 x 2-1/2"
Facility + Site

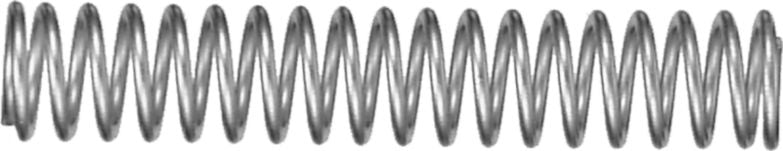

Compression Spring 3/8 x 2-1/2"
(Pack of 5.0)

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Read More
Check Availability

Catalog page#: 16-36, 16-37

Frequently Bought Together


Valve Action® Permanent Paint Marker Red

Item#: CW4891

Automotive Refinishing Tape 1" x 60 Yards

Item#: 50115

Wypall L30 Wiper 16.4 x 9.8"

Item#: 28136

Prem Org Nitrile Glvs, Lrg

Item#: 1418081

Prem Black Nitrile Glvs, Med

Item#: 1418067

Prem Blk Ntrl Glvs, Lrg, CS

Item#: 1423057

Vision Pro Super

Item#: DY21061040

Butt Connector 22 to 18 AWG Red

Item#: 92822

SAE Flat Washer Thru-Hardened Steel 3/8"

Item#: 88437

Red GT Series Extra Heavy Duty Wiper Roll

Item#: 1648148

Hi-Tack Double-Faced Mounting Tape 1" x 30'

Item#: P49542

Valve Action® Permanent Paint Marker Orange

Item#: CW4894

Extension Spring 3/8 x 4-1/2"

Item#: 89669

Compression Spring 5/16 x 12"

Item#: 11093

Compression and Extension Spring Kit 76Pcs

Item#: LP624BL

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#: 89575
Type Compression Spring
O.D. 15/32 "
Length 2-1/2 "
I.D. 3/8 "
Wire Diameter 0.054 "
Wire Gauge 17
Number of Coils 19-1/2
Rate 9.5 lb./in.
Maximum Work Load 15 lb
Material Steel
UNSPSC #: 31161904
TAA Compliant: Yes
Weight: 0.1 lb
