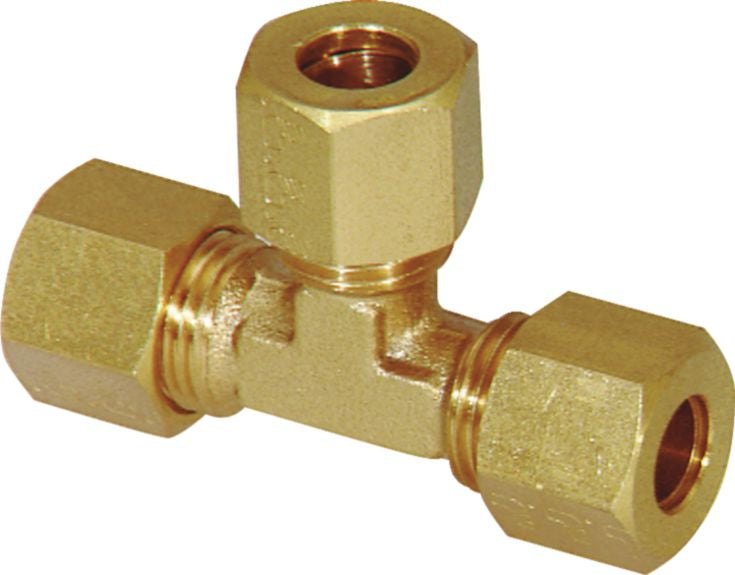

Compression Union Tee, Brass, 8 x 8 x 8mm, Tube x Tube x Tube, 500PSI
(Pack of
2)
SKU:51071 Item#: 51071
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Frequently Bought Together
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Technical Specifications
| Item#: | 51071 |
|---|---|
| Fitting Type | Compression |
| Configuration | Union Tee |
| Material | Brass |
| Connection Type A x B x C | Tube x Tube x Tube |
| Fitting Dimension A | 8 mm |
| Fitting Dimension B | 8 mm |
| Fitting Dimension C | 8 mm |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
