Home Material Handling Chain and Attachments Links Links Coupling Link 9/32" Body Grade 80 Chain
Chain and Attachments

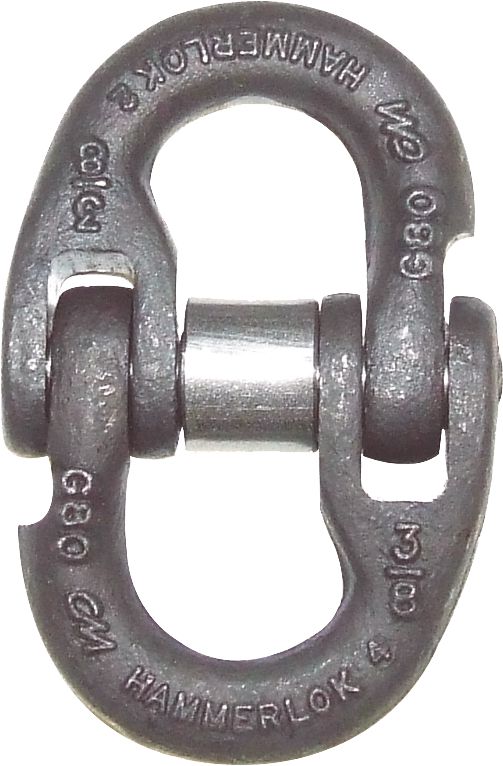

Coupling Link 9/32
Coupling Link 9/32

Coupling Link For 9/32 Grade 80 Chain, 4100 Lb Safe Load
(Pack of 1)

Item#: 88919

CM®

• Commonly known as “hammerloks”
• For attaching chain to master links and eye-type hooks
CAUTION: Serious damage to a chain may occur when a force exceeding the working load limit is applied. The working load limits should never be exceeded. If a chain is damaged, it should be replaced, not repaired.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

Yale® Weld-On Lifting Hook, 2,205 lb WLL, Weld-On Lifting Hook, 2,205 lb WLL

Yale® Weld-On Lifting Hook, 11,025 lb WLL

Item#: 1429750
Repair Lap Link, 3/8

Repair Lap Link, 3/16", 225 lb WLL, Zinc

Item#: 1424935
Cold Shut, 5/16

Cold Shut 1/2" Body 3500 Lb Safe Load

Item#: 14593
Double Clevis (Mid-Link), 7/16

Double Clevis (Mid-Link), 5/8", 13,000 lb WLL

Item#: 81644
Hammerlok Coupling Link, Grade 80, 1

Hammerlok Coupling Link, Grade 80, 1", 47,700 lb WLL

Item#: 1429688
Hammerlok Coupling Link, Grade 100, 1/2

Hammerlok Coupling Link, Grade 100, 5/8", 22,600 lb WLL

Item#: 1429685
Repair Lap Link, 3/8

Repair Lap Link, 1/4", 400 lb WLL, Zinc

Item#: 1424939
Repair Lap Link, 3/8

Repair Lap Link, 1/4", 325 lb WLL, Zinc

Item#: 1424937
Double Clevis (Mid-Link), 7/16

Double Clevis (Mid-Link), 5/8", 13,000 lb WLL

Item#: 81644
Wire Rope Sleeve, 7/32

Wire Rope Sleeve, 1/16", Aluminum

Item#: 1440343
Tarp Strap Epdm Rubber with Hooks 28

Tarp Strap Epdm Rubber with Hooks 14" Long

Item#: 99560
Screw Pin Anchor Shackle, 3/8

Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL

Item#: 1429887
SAE Flat Washer Thru-Hardened Steel 1/4

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: 88435
Locknut with Nylon Insert Grade 8 5/16-24, Locknut with Nylon Insert, Grade 8, Alloy Steel, Yellow Zinc Finish, Fine Thread

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983
IFI 100/107 Top Locknut Grade C 1-8, IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933
Double Spiral Tube Brush 1

Double Spiral Tube Brush 3/4"

Item#: 92009
Nut Torq Tite Hex Flange, 3/8-16, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, 3/8-16

Nut Torq Tite Hex Flange, 3/8-16

Item#: DY02552100
Screwdriver Master Bit Set, S2 Tool Steel, 100pc, Screwdriver Master Bit Set, 100 Piece, S2 Tool Steel, Storage Case

Screwdriver Master Bit Set, S2 Tool Steel, 100pc

Item#: FA5108
Double Spiral Tube Brush 1

Double Spiral Tube Brush 3/4"

Item#: 92009
Nut Torq Tite Hex Flange, 3/8-16, Nut Torq Tite Hex Flange, Grade 2, Serrated, Coarse, Steel, Zinc Finish, 3/8-16

Nut Torq Tite Hex Flange, 3/8-16

Item#: DY02552100
Screwdriver Master Bit Set, S2 Tool Steel, 100pc, Screwdriver Master Bit Set, 100 Piece, S2 Tool Steel, Storage Case

Screwdriver Master Bit Set, S2 Tool Steel, 100pc

Item#: FA5108

Product Description

• Commonly known as “hammerloks”
• For attaching chain to master links and eye-type hooks
CAUTION: Serious damage to a chain may occur when a force exceeding the working load limit is applied. The working load limits should never be exceeded. If a chain is damaged, it should be replaced, not repaired.

Technical Specifications

Item#: 88919
Manufacturer Model #: 664028-2
Type Hammerlok
Grade 80
Chain Size 9/32 "
Working Load Limit 3,500 lb
Material Alloy Steel
Dimension A 5/16 "
Dimension B 1-13/16 "
Dimension C 5/8 "
UNSPSC #: 31151600
TAA Compliant: Yes
Weight: 0.22 lb
