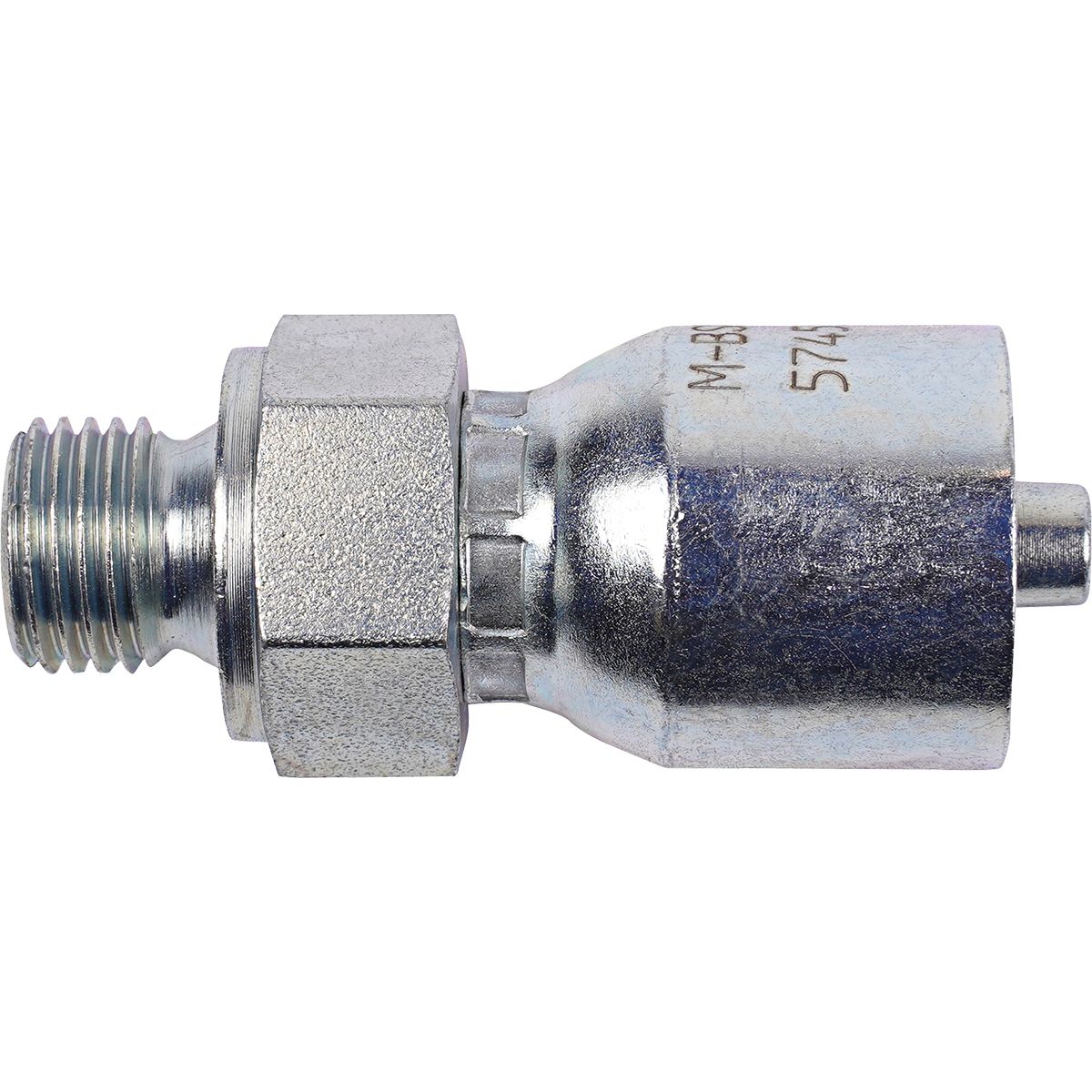

Crimp-On Coupling BSPP, Male Rigid, 1/4"(-4) x 1/4-19(-4)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT Tuff hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 1-14
Item#: 16710
Couldn't load pickup availability
Crimp-On Hose Coupling 3/4" x 1-1/16-12
Item#: 88372KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16703
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Item#: 52093
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Item#: 16608
Couldn't load pickup availability
Crimp-On Coupling 1/4" x 9/16-18
Item#: 51140KH
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Item#: 97564
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Item#: 57505
Couldn't load pickup availability
Hose Clamp 301 SS 1-13/16 to 2-3/4"
Item#: 87142
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Item#: 53980
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Item#: 53981
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Item#: A104
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT Tuff hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261340 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Male |
| Fitting End Style | BSPP - British Standard Pipe Parallel |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | G-1/4-19 (-4) |
| Fitting Series | K2 |
| Size | (-4)X(-4) |
| Hex Size | 13/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
