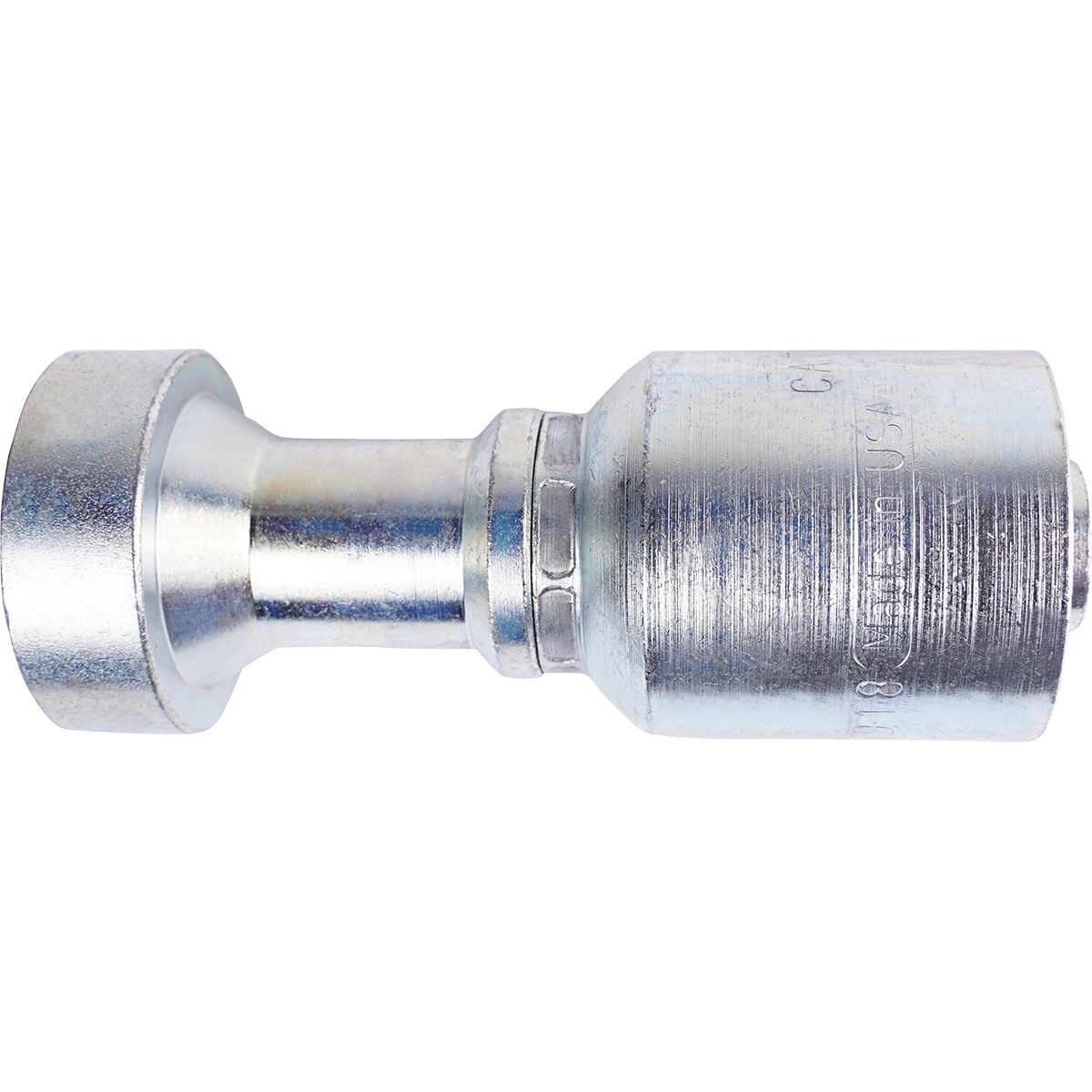

KURT Hydraulics W Carbon Steel Crimp-On Coupling CAT Flange, Straight Rigid, 1" (-16) Hose x 1"(-16) Flange
(Pack of
1)
SKU:DY54260351 Item#: DY54260351
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Item#: DY89310247
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Item#: 88441
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Item#: A100
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260351 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar/Thick Flange |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1.88 (-16) |
| Flange Diameter | 1.88 " |
| Flange Size | 1 " |
| Fitting Series | W |
| Size | (-16)X(-16) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 1.21 lb |
Product Restrictions
