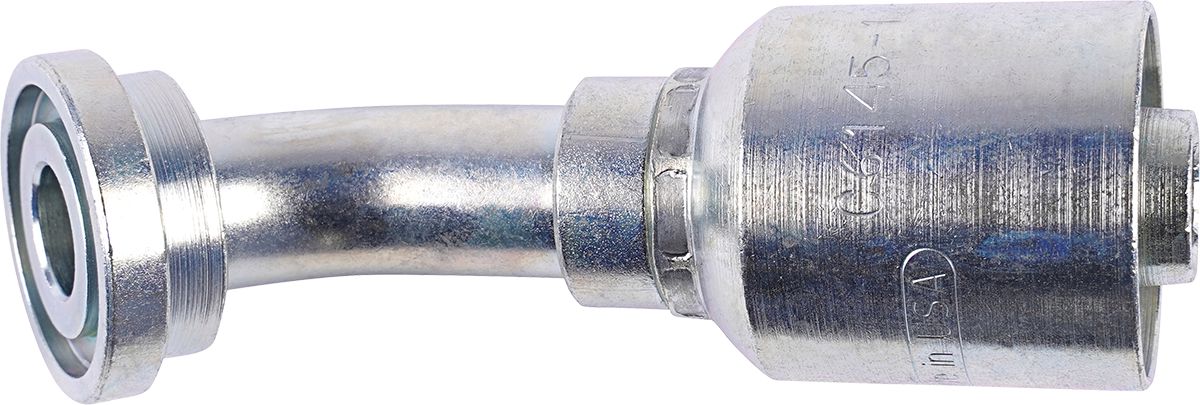

Crimp-On Coupling Code 61, 45° Bend, 3/4"(-12) x 3/4"(-12)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, KURT Tuff hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• KURT Hydraulics wire style hose couplings are available with many different end configurations including SAE and Metric.
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 7/8-14
Item#: 88365KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Item#: 16614
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Item#: 62885
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 3/4-16
Item#: 88361KH
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Item#: 86151
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Item#: 5363
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Item#: 86327
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Item#: 91820
Couldn't load pickup availability
Vision Pro Super
Item#: DY21061040
Couldn't load pickup availability
High Solids Paints Gloss Black
Item#: 1509224
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 92823
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, KURT Tuff hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• KURT Hydraulics wire style hose couplings are available with many different end configurations including SAE and Metric.
Technical Specifications
| Item#: | DY54260517 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 1.50 (-12) |
| Flange Diameter | 1.50 " |
| Flange Size | 3/4 " |
| Fitting Series | W |
| Size | (-12)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.7 lb |
