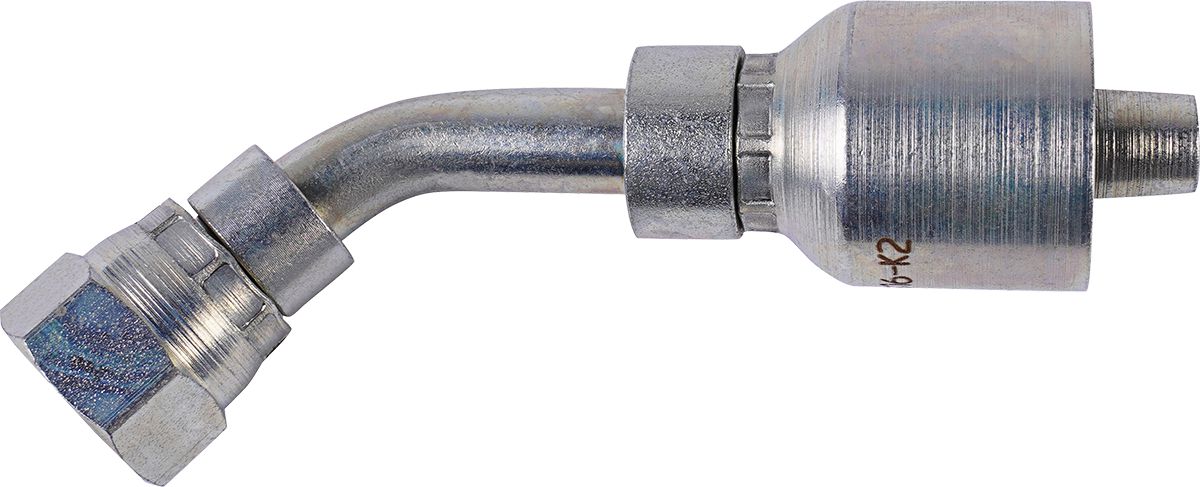

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Heavy, 45° Bend Female Swivel, 3/4" (-12) Hose x M30 X 2.0
(Pack of
1)
SKU:DY54260998 Item#: DY54260998
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260998 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | M30x2.0 |
| Fitting Series | W |
| O.D. Tube Size 1 | 20 mm |
| Size | (-12)XM30x2.0 |
| Hex Size | 1-7/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.925 lb |
