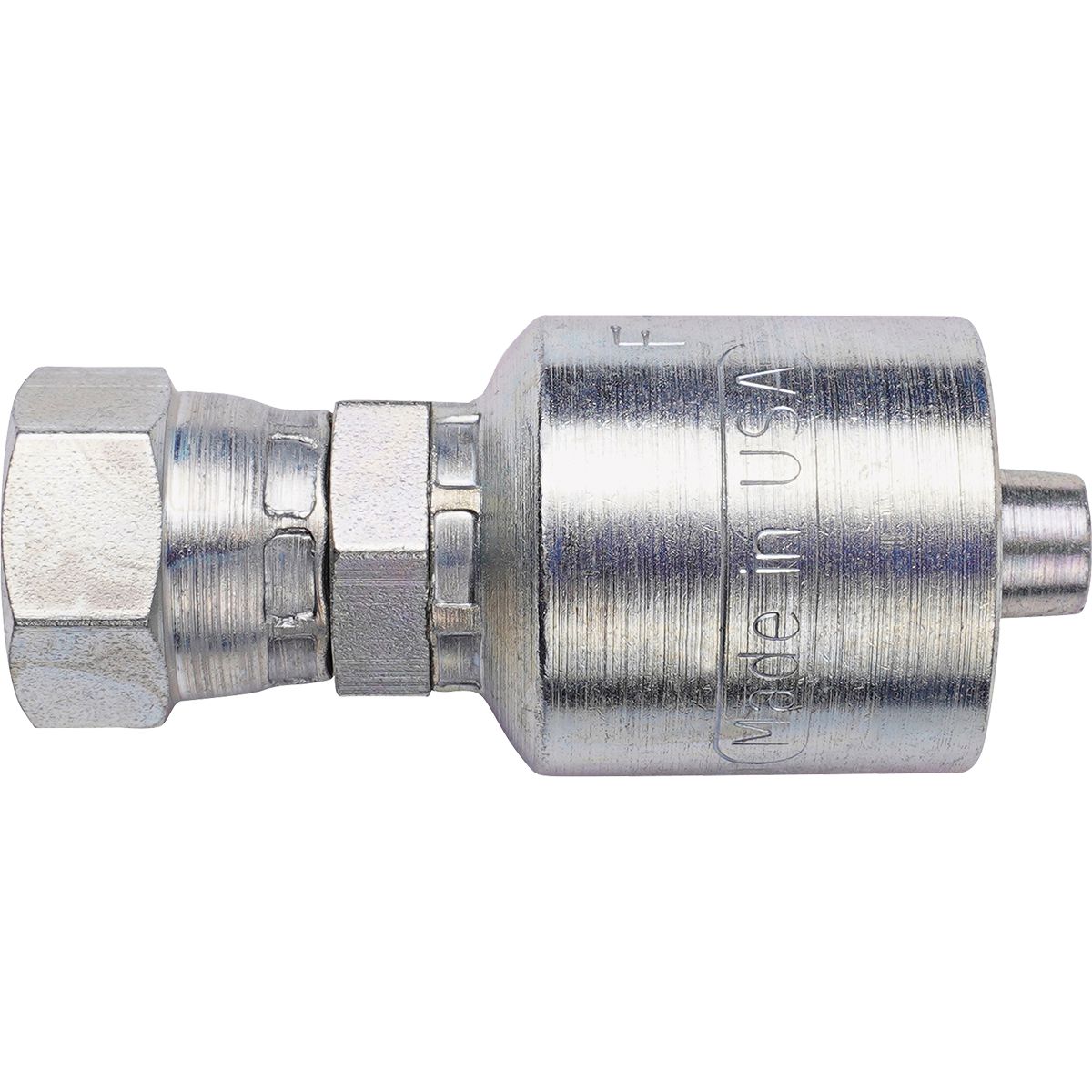

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Heavy, Female Swivel, 1/2" (-8) Hose x M24 X 1.5
(Pack of
1)
SKU:DY54261054 Item#: DY54261054
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54261054 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M24x1.5 |
| Fitting Series | W |
| O.D. Tube Size 1 | 16 mm |
| Size | (-8)XM24x1.5 |
| Hex Size | 1-3/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.34 lb |
