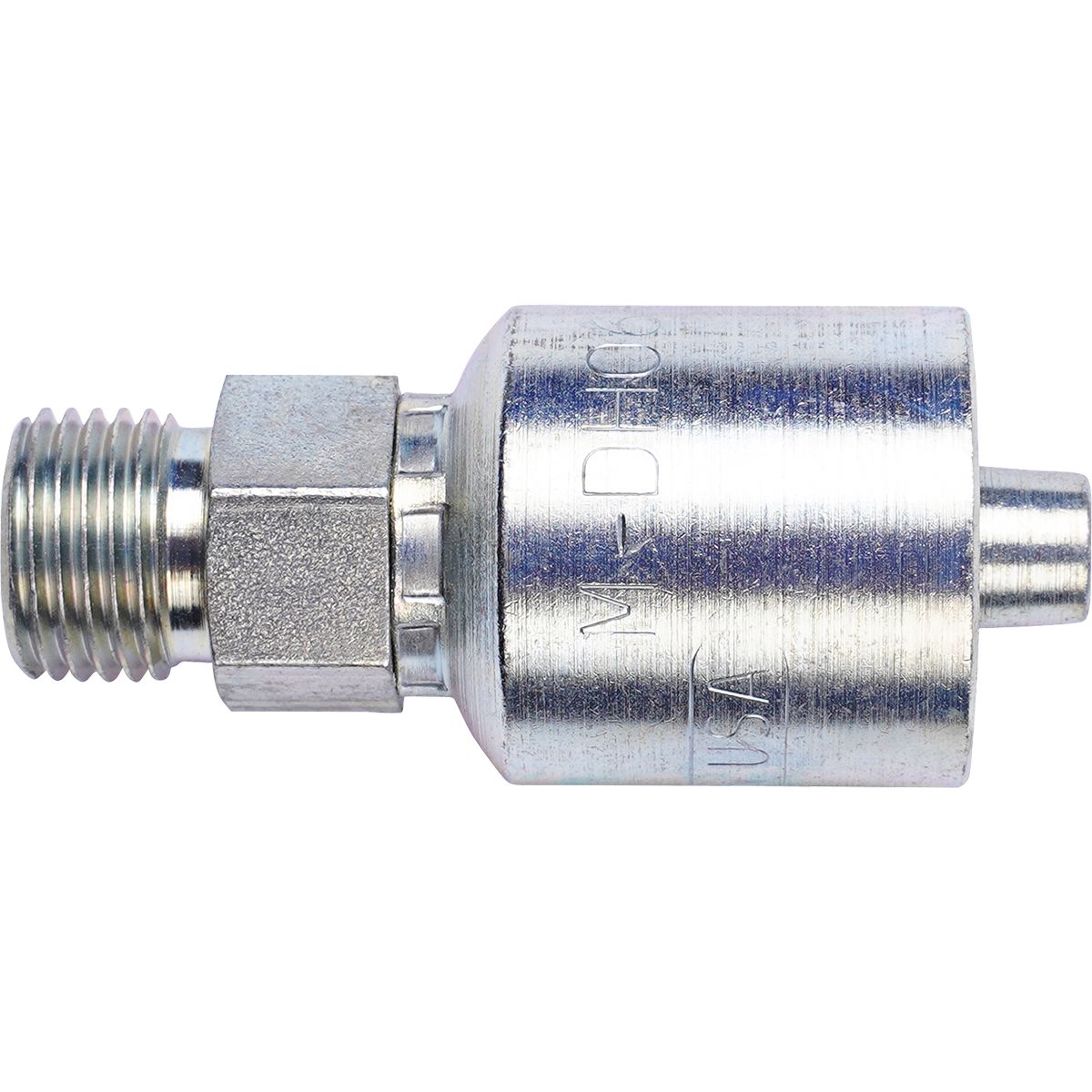

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Heavy, Male Rigid, 3/8" (-6) Hose x M16 X 1.5
(Pack of
1)
SKU:DY54260964 Item#: DY54260964
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260964 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Male |
| Fitting End Style | DIN 24 Degree Flare - s.Rh Heavy Pattern |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M16 x 1.5 |
| Fitting Series | W |
| O.D. Tube Size 1 | 8 mm |
| Size | (-6)XM16x1.5 |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.165 lb |
