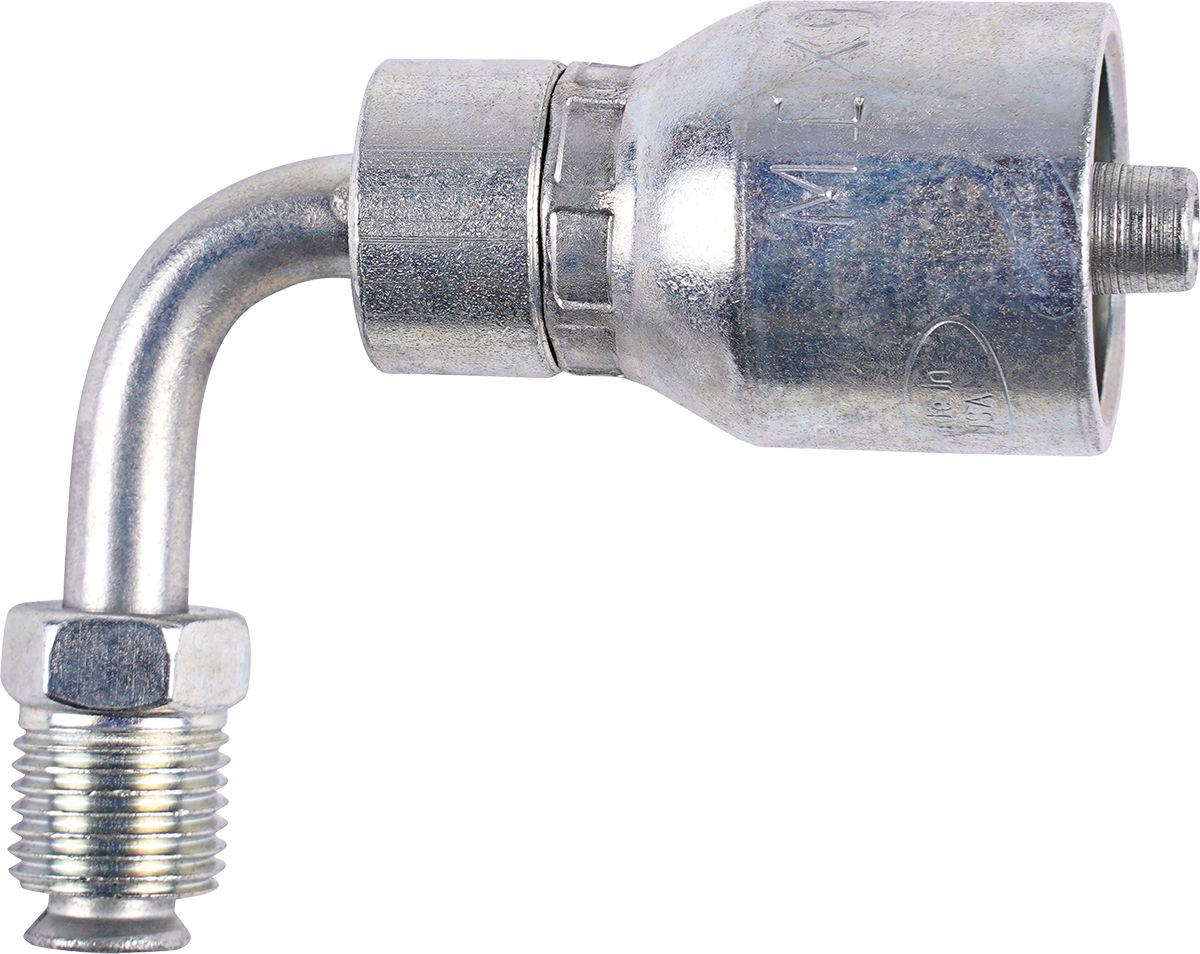

KURT Hydraulics K2 Carbon Steel Crimp-On Coupling JIC 37°, 90° Long Bend Female Swivel, 1/4" (-4) Hose x 9/16-18 (-6)
(Pack of
1)
SKU:DY54260607 Item#: DY54260607
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54260607 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 9/16-18 (-6) " |
| Fitting Series | K2 |
| Size | (-4)X(-6) |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
