Cryocut 1-1/4" Body Dia. 90o Angle Countersink, 3-Flute, 1/2" Shank Dia. 2-3/4" Overall Length, 1-1/4" Shank Length
(Pack of
1)
SKU:DY80850218 Item#: DY80850218
• Three-flute center reamers cut countersinks and recesses for extisting holes
• Cryophase™ treatment extends the wear resistance and useful life of these high speed steel countersinks
• 82°, 90° and 100° angles cover countersink requirements for most common fastener head styles
Specifications
• Material: High Speed Steel
• Hardness: 64-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• 82° - commonly found on oval countersunk head machine screws, flat head tapping screws, oval trim head tapping screws, socket flat head cap screws and countersunk head plow bolts
• 90° - Commonly found on oval head rivets and flat head countersunk rivets
• 100° - Commonly found on flat head blind rivets, self-plugging rivets, flush head drive pin rivets, close tolerance flat countersunk head machine screws, and flat head tapping screws
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together

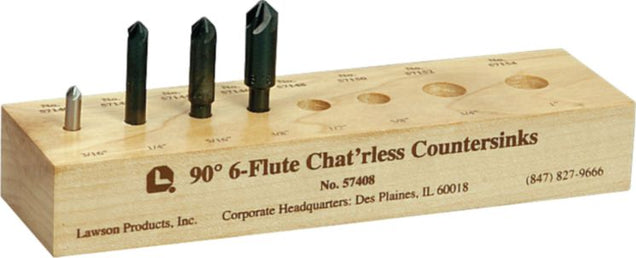

Chatterless Countersink Kit 4Pcs 90° Six Flute
Couldn't load pickup availability
Chatterless Countersink 90° Six Flute 1"
Couldn't load pickup availability
Chatterless Countersink 90° Six Flute 1/2"
Couldn't load pickup availability
Countersink Drill Bit 5/64"
Couldn't load pickup availability
Cryocut 1" Body Dia. 90o Angle Countersink, 3-Flute
Couldn't load pickup availability
Chatterless Countersink 82° Six Flute 3/8"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Blue
Couldn't load pickup availability
1/4" Fractional Drill Bit, Jobber Length, W/Flats
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/32"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 1-1/2"
Couldn't load pickup availability
CryoBoost 3/8" Dia. 1/4" Hex Shank Drill Bit
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Compact Cordless Circular Saw Charging Bundle
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Product Description
• Three-flute center reamers cut countersinks and recesses for extisting holes• Cryophase™ treatment extends the wear resistance and useful life of these high speed steel countersinks
• 82°, 90° and 100° angles cover countersink requirements for most common fastener head styles
Specifications
• Material: High Speed Steel
• Hardness: 64-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• 82° - commonly found on oval countersunk head machine screws, flat head tapping screws, oval trim head tapping screws, socket flat head cap screws and countersunk head plow bolts
• 90° - Commonly found on oval head rivets and flat head countersunk rivets
• 100° - Commonly found on flat head blind rivets, self-plugging rivets, flush head drive pin rivets, close tolerance flat countersunk head machine screws, and flat head tapping screws
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80850218 |
|---|---|
| Type | Countersink |
| Body Diameter | 1-1/4 " |
| Flutes | Three |
| Included Angle | 90 ° |
| Centerline Angle | 45 ° |
| Shank Size | 1/2 " |
| Shank Length | 1-1/4 " |
| Overall Length | 2-3/4 " |
| UNSPSC #: | 23241603 |
| TAA Compliant: | No |
| Weight: | 0.34 lb |
