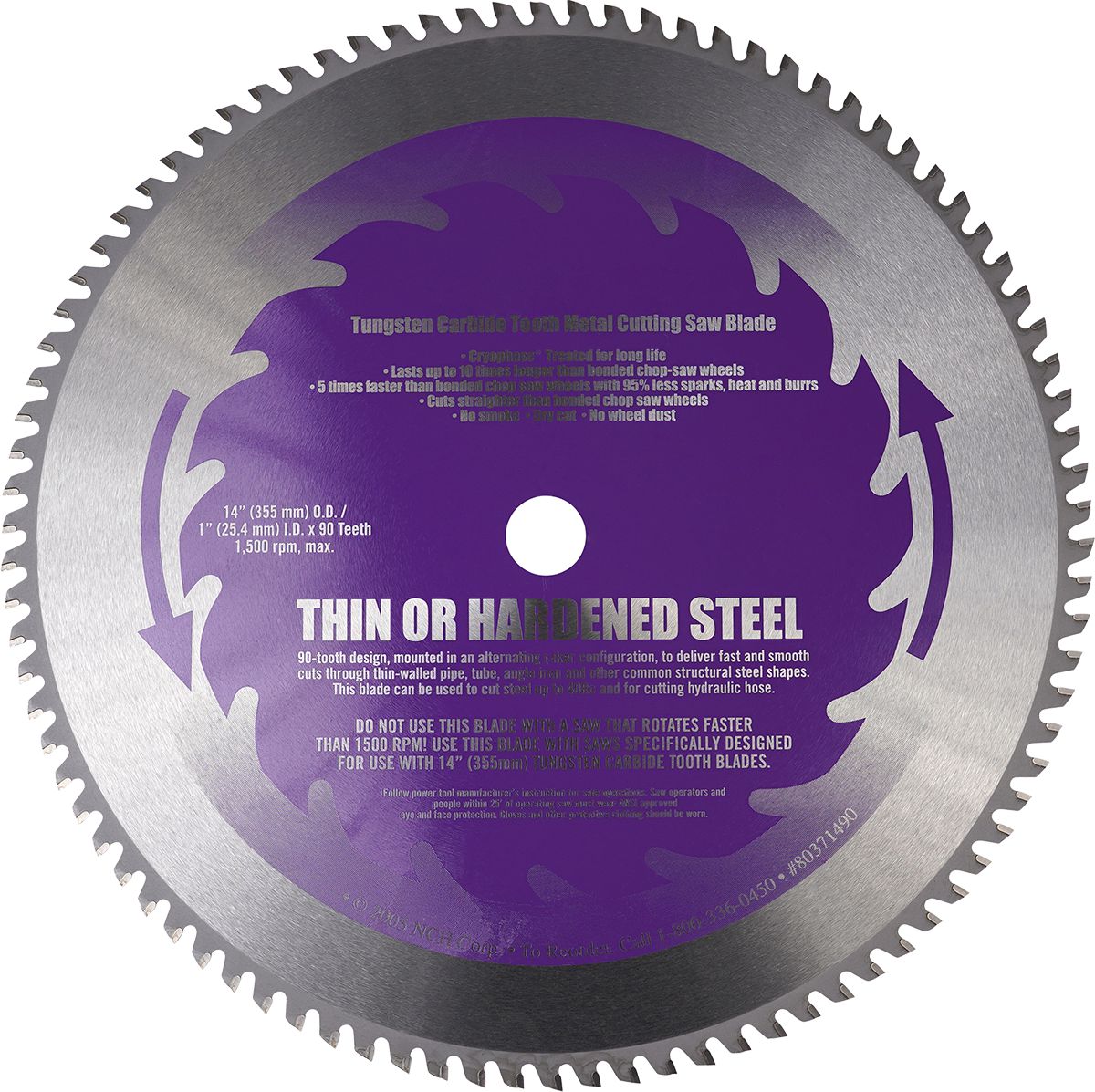

Cryoflex 14" Circular Metal Cutting Saw Blade, 90 Teeth,Carbide Tipped, For Thin Steel
(Pack of
1)
SKU:DY80371490 Item#: DY80371490
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Frequently Bought Together
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Cut-Off Wheel for Right Angle Grinder 4-1/2"
Couldn't load pickup availability
Circular Saw Blade for Thin Steel 6-1/2"
Couldn't load pickup availability
Circular Saw Blade for Mild Steel 12"
Couldn't load pickup availability
Circular Saw Blade for Mild Steel 10"
Couldn't load pickup availability
Destructor Reciprocating Blade 12"
Couldn't load pickup availability
General Purpose Reciprocating Saw Blade 12"
Couldn't load pickup availability
Cryoflex 6" x 3/4" x 0.035" Reciprocating Saw Blade, 14 TPI
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/2"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Product Description
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Technical Specifications
| Item#: | DY80371490 |
|---|---|
| Diameter | 14 " |
| Number of Teeth | 90 |
| Arbor Size | 1 " |
| Maximum RPM | 1500 RPM |
| Material Thickness | 3/16 " |
| UNSPSC #: | 27112802 |
| TAA Compliant: | Yes |
| Weight: | 3.73 lb |
