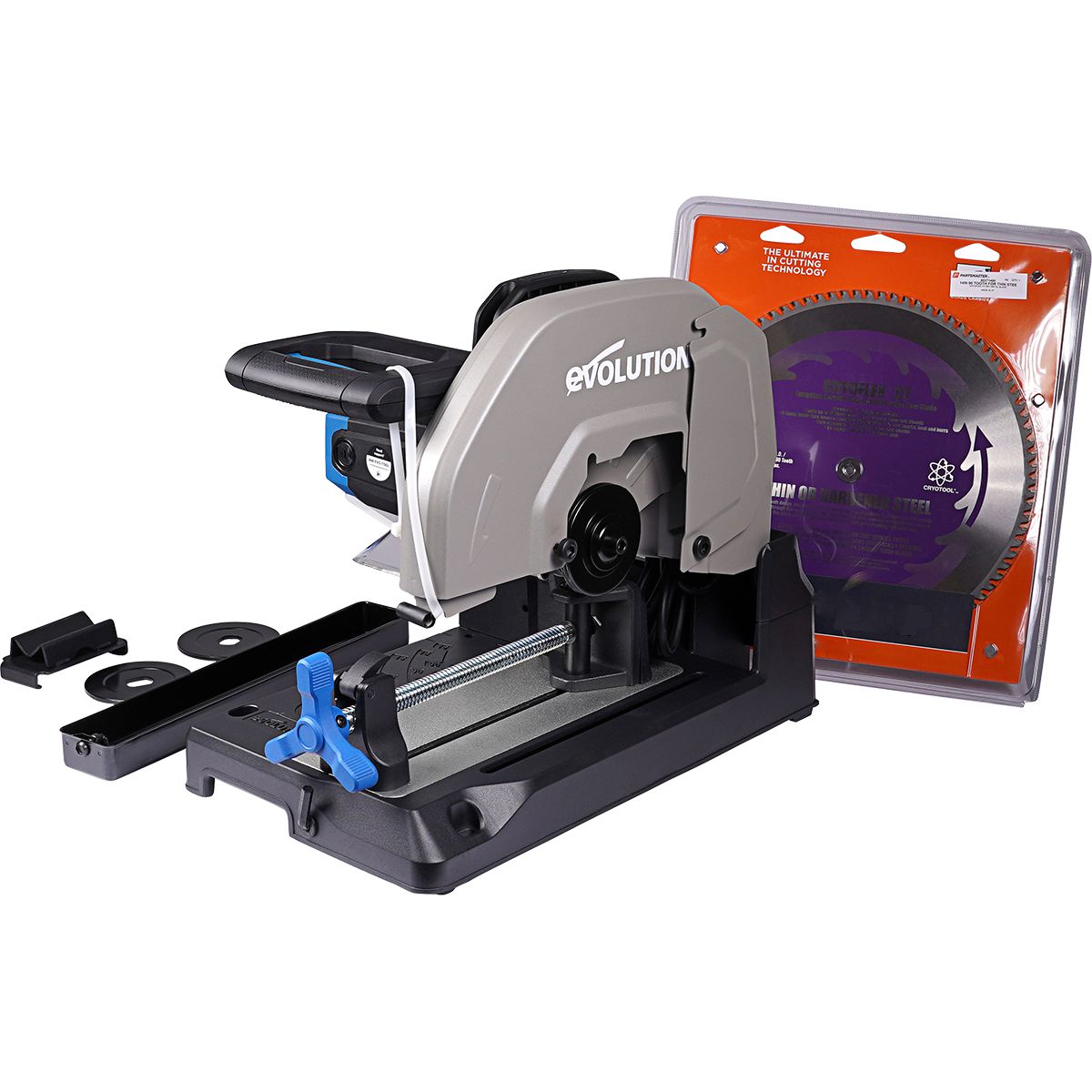

Evolution High Torque Low Speed 110-Volt Metal Cutting Saw for 14" CT Blades
(Pack of
1)
SKU:DY80370006 Item#: DY80370006
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor, team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" x 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" x 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" x 7"
• Rectangle 45° (1/4" Wall): 3-1/16" x 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H x W x D): 22" x 22" x 12-3/4"
Cryoflex® Blades
• Wheel Size: 14" (355mm) diameter x 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Frequently Bought Together
7-1/4" Circular Saw 3500rpm 13A Motor
Couldn't load pickup availability
14" Chop Saw 1450rpm 15A Motor
Couldn't load pickup availability
Evolution 9" Metal Cutting Circular Saw W/ 3 Stainless Steel Blades
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Power Cord for 14" Chop Saw
Couldn't load pickup availability
D1 Portable Magnetic Drill 2" Depth of Cut
Couldn't load pickup availability
High Torque Metal Cutting Saw 14 Inch W/ 66T Steel Blade
Couldn't load pickup availability
7" Auto-Adjust Pliers
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
100 Piece, 1/4" Shank Master Bit Set
Couldn't load pickup availability
Product Description
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor, team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" x 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" x 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" x 7"
• Rectangle 45° (1/4" Wall): 3-1/16" x 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H x W x D): 22" x 22" x 12-3/4"
Cryoflex® Blades
• Wheel Size: 14" (355mm) diameter x 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Technical Specifications
| Item#: | DY80370006 |
|---|---|
| Blade Diameter | 14 " |
| Blade Arbor | 1 " |
| Depth of Cut | 4-3/4" x 4-3/4" Maximum Box Section 90° |
| Maximum RPM | 1450 |
| Motor | 115V, 2200W, 60Hz |
| Weight | 50.6 lb |
| Dimensions | 22.0" H x 22.0" W x 12.75" D |
| UNSPSC #: | 27112802 |
| TAA Compliant: | No |
| Weight: | 65.0 lb |
