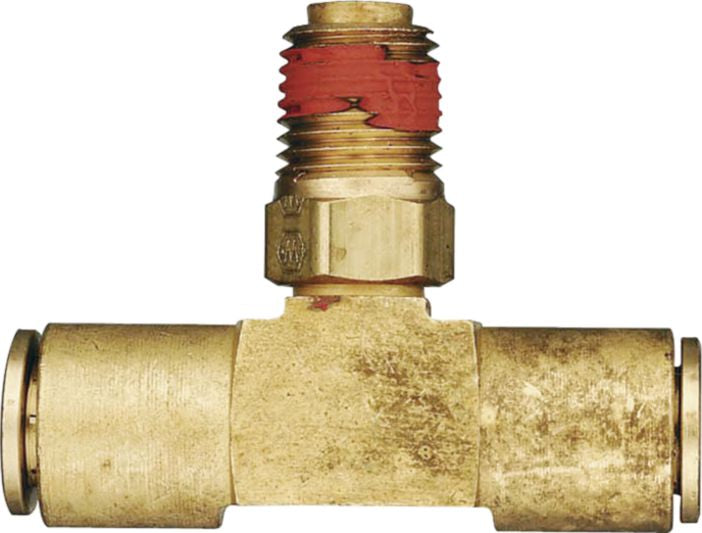

DOT Air Brake Push to Connect Swivel Branch Tee, Male, Brass, 1/4 x 1/4 x 1/4-18, Tube x Tube x Pipe
(Pack of
5)
The DOT Male Brass Swivel Branch Tee is designed for quick, reliable connections in demanding air brake systems. Its unique 360° rotation on the threaded base allows for easy installation in tight spaces, saving you time and effort on the job. Built from durable CA360 brass, this reusable fitting ensures a secure, leak-free performance from a vacuum to 150 PSI. As one of our D.O.T. approved brass swivel tee fittings, it provides the robust performance you need for any nylon tubing application.
• Quick and easy assembly; reusable
• Construction: CA360 brass with ethylene propylene O-ring
• Pressure range vacuum to 150 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• D.O.T. Approved for Air Brake Applications
• Use with nylon tubing
Frequently Bought Together
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
The DOT Male Brass Swivel Branch Tee is designed for quick, reliable connections in demanding air brake systems. Its unique 360° rotation on the threaded base allows for easy installation in tight spaces, saving you time and effort on the job. Built from durable CA360 brass, this reusable fitting ensures a secure, leak-free performance from a vacuum to 150 PSI. As one of our D.O.T. approved brass swivel tee fittings, it provides the robust performance you need for any nylon tubing application.• Quick and easy assembly; reusable
• Construction: CA360 brass with ethylene propylene O-ring
• Pressure range vacuum to 150 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• D.O.T. Approved for Air Brake Applications
• Use with nylon tubing
Technical Specifications
| Item#: | 27216 |
|---|---|
| Fitting Type | Air Brake Fittings - Push-to-Connect |
| Material | Brass |
| Configuration | Swivel Male Branch Tee |
| Connection Type A x B x C | Tube x Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/4 " |
| Fitting Dimension C | 1/4-18 |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.45 lb |
