Home Automotive Hardware Dual End Threaded Stud 1/2 SAE x 1/2 USS 3-1/2"
Automotive Hardware

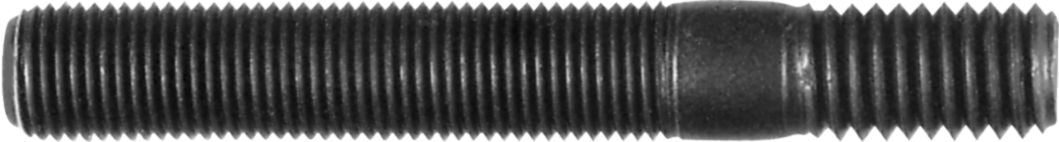

Dual End Threaded Stud, Medium Carbon Steel, Oil Finish, 1/2 SAE x 1/2 USS, Class 2A Thread, 3-1/2" Overall Length
(Pack of 10)

Item#: 10543

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Catalog page#: 21-4, 21-5

Frequently Bought Together


Hex Flange Spinlock Nut Steel 3/8-16

Item#: P23727

MCN Series Lead Clip-On Wheel Weight 1 oz

Item#: P44736

Dual Foot Tilt-Lock Air Chuck

Item#: 29042

On-The-Wheel Tire Repair String 4"

Item#: 94919

P Series Lead Clip-On Wheel Weight 0.25oz

Item#: 1529764

Front and Rear Bumper Fascia Retainer Plastic 1"

Item#: P20118

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

PTO Pin Lock 1/4 x 2-1/2"

Item#: 64348

PZ Series Zinc Clip-On Wheel Weight 1/4oz

Item#: KT14848

PZ Series Zinc Clip-On Wheel Weight 1oz

Item#: KT14851

PZ Series Zinc Clip-On Wheel Weight 1-1/2oz

Item#: KT11019

Dual End Threaded Stud 1/4 SAE x 1/4 USS 1-1/2"

Item#: 10502

Dual End Threaded Stud 3/8 USS x 3/8 USS 1-3/4"

Item#: 10522

Dayton Wheel Rim Stud 3/4-10 x 3-1/8"

Item#: 81522

1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank

Item#: PM08141060

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

7Pc 1/4Dr Gorilla Extractor Set

Item#: DY89320100

1" Dia. X 1" Wide, Flap Wheel, 60 Grit, 1/4" Shank

Item#: PM08141060

Nut Torq Tite Hex Flange, 1/4-20

Item#: DY02551300

7Pc 1/4Dr Gorilla Extractor Set

Item#: DY89320100

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10543
Diameter 1/2 SAE x 1/2 USS
Overall Length 3-1/2 "
SAE Nut End 2-1/4 "
USS Hub End 15/16 "
Approximate Length 15/16 "
UNSPSC #: 25171900
TAA Compliant: Yes
Weight: 1.68 lb
