Home Automotive Hardware Dual End Threaded Stud 5/16 SAE x 5/16 USS 1-3/4"
Automotive Hardware

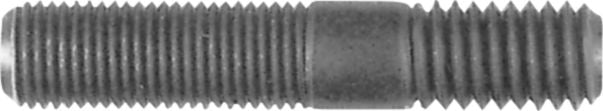

Dual End Threaded Stud, Medium Carbon Steel, Oil Finish, 5/16 SAE x 5/16 USS, Class 2A Thread, 1-3/4" Overall Length
(Pack of 10)

Lawson Products

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Read More
Check Availability

Catalog page#: 21-4

Frequently Bought Together


MCN Series Lead Clip-On Wheel Weight 1-1/4 oz

Item#: P44747

Steel Wiring Harness Clip Large

Item#: 1902

P Series Lead Clip-On Wheel Weight 1oz

Item#: 1529767

Splash Shield and Fascia Retainer Nylon 1"

Item#: P80658

MCN Series Lead Clip-On Wheel Weight 1 oz

Item#: P44736

MCN Series Lead Clip-On Wheel Weight 1/4 oz

Item#: P44682

Food Grade Silicone Lubricant 10oz

Item#: 19915

CryoBoost 3/8" Dia. 1/4" Hex Shank Drill Bit

Item#: DY83612464

Hex Cap Screw Property Class 12.9 M20-2.5 x 120mm

Item#: 84506A

Locknut with Nylon Insert Grade 8 5/16-18

Item#: 53980

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Dual End Threaded Stud 5/16 SAE x 5/16 USS 1-1/4"

Item#: 10507

MC Type Zinc Clip-On Wheel Weight 1/2oz

Item#: KT13471

PZ Series Zinc Clip-On Wheel Weight 1/2oz

Item#: KT11015

Wheel Stud Installer Kit for Light Truck and SUV

Item#: 61414

Dual End Threaded Stud 5/16 USS x 5/16 USS 2"

Item#: 10515

Dual End Threaded Stud 5/16 USS x 5/16 USS 1-3/4"

Item#: 10514

Product Description

• Also known as Axle Shaft Hub Studs
• Burr-free rolled threads for maximum strength and sealing
• C1038 medium carbon steel
• Heat-treated
• Oil finish
• Class 2A thread
• For wheels, manifolds and general-purpose applications
• For use with Lawson Drive Flange Wedges

Technical Specifications

Item#: 10509
Diameter 5/16 SAE x 5/16 USS
Overall Length 1-3/4 "
SAE Nut End 7/8 "
USS Hub End 5/8 "
Approximate Length 5/8 "
UNSPSC #: 25171900
TAA Compliant: Yes
Weight: 0.31 lb
