Home Hydraulics Fittings Brass Dubl-Barb Elbow Brass 90° 1/4-18 x 3/8"
Brass

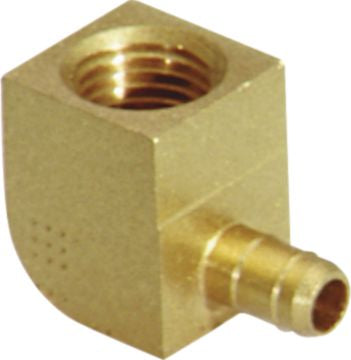

Dubl-Barb Elbow, Brass, 90°, 1/4-18 x 3/8", Female NPT x Tube, 150PSI
(Pack of 5)

Item#: 86712

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Read More
Check Availability

Catalog page#: 9-19

Frequently Bought Together


Hex Head Plug Brass 3/4-14 Male NPT

Item#: 82257

Mini Ball Valve Brass 1/4-18 x 1/4-18

Item#: 28950

Forged Body Ball Valve Brass 3/8 x 3/8"

Item#: 63135

Pipe Bushing Brass 1/4-18 x 1/8-27

Item#: 5282

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Item#: 5315

Merchant Coupling Steel 1/4-18 x 1/4-18

Item#: 8636

Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"

Item#: 97564

Z Series Crimp-On Hose End 1/2 x 3/4-16"

Item#: 16615

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Technical Specifications

Item#: 86712
Fitting Type Dubl-Barb
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Female NPT x Tube
Fitting Dimension A 1/4-18
Fitting Dimension B 3/8 "
Tube Inside Diameter B 1/4 "
Working Pressure 150 PSI
Temperature Range -65 to 90 F
Length 1-1/8 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.42 lb
