Home Hydraulics Pneumatic/Instrumentation Fittings Air Line Dynaswivel Air Line Connector 1/4-18 x 1/4-18
Air Line

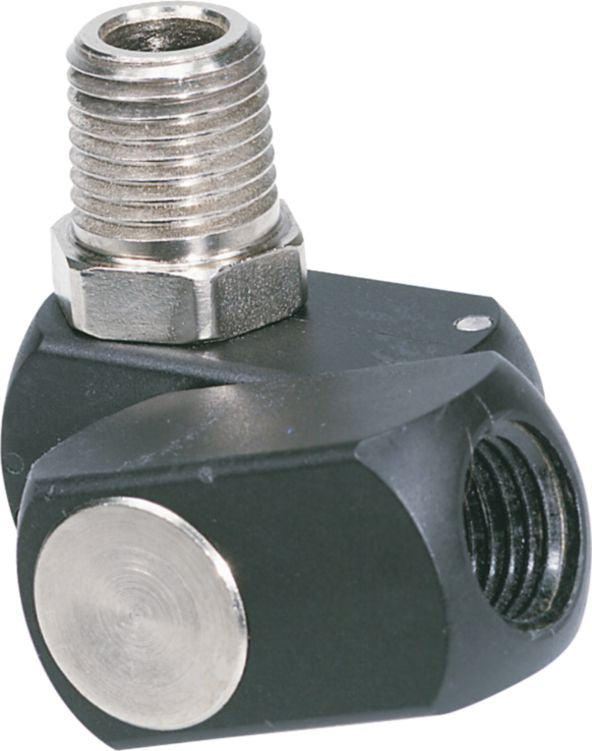

Dynaswivel Air Line Connector 1/4-18 x 1/4-18, Dynaswivel Air Line Connector, 1/4-18 x 1/4-18, Male NPT x Female NPT
Dynaswivel Air Line Connector 1/4-18 x 1/4-18, Dynaswivel Air Line Connector, 1/4-18 x 1/4-18, Male NPT x Female NPT
Dynaswivel Air Line Connector 1/4-18 x 1/4-18, Dynaswivel Air Line Connector, 1/4-18 x 1/4-18, Male NPT x Female NPT
Dynaswivel Air Line Connector 1/4-18 x 1/4-18, Dynaswivel Air Line Connector, 1/4-18 x 1/4-18, Male NPT x Female NPT

Dynaswivel Air Line Connector, 1/4-18 x 1/4-18, Male NPT x Female NPT
(Pack of 1)

Item#: 58565

Lawson Products

Ensure excellent flow characteristics while reducing operator fatigue and risk of repetitive motion injury. These lightweight, resilient, industrial-quality connectors swivel 360° at two pivot points to allow the air line to drop to the floor, resulting in increased maneuverability.
• Works in any position
• For use with any air tool, including percussion tools
• Non-marring composite construction
• 1/4" male and female NPT connectors
Important: Do not exceed 150 PSI. Do not overtighten connections, maximum torque value 20 ft./lbs.

Read More
Check Availability

Catalog page#: 8-165

Frequently Bought Together

No product placeholder

200-G-BU

Item#: 1593464
Quick Connect Spray Tips Kit, 4000 PSI, Brass, Includes 0º, 15º, 25º, 40º Spray Tips

Quick Connect Spray Tips Kit

Item#: 1694099
Air Hose Ferrule Brass 11/16

Air Hose Ferrule Brass 5/8"

Item#: 61775
Quick Disconnect Coupler Brass 1/4

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Item#: 11962
Quick Disconnect Plug Steel 3/8

Quick Disconnect Plug Steel 3/8" x 3/8-18

Item#: 11930
Garden Hose End Brass 5/8

Garden Hose End Brass 3/4" x 3/4-11-1/2

Item#: 88885
Silicone Heater/Coolant Hose Clamp SS 2-1/16 to 3

Silicone Heater/Coolant Hose Clamp 1/2 to 29/32"

Item#: 90782
Z Series Crimp-On Hose End 1/2

Z Series Crimp-On Hose End 1/4" x 9/16-18

Item#: 16610
Super 77 Hose Clamps 300 Series Stainless Steel bands with 305 Series Stainless Steel Screw Size # 76 2-1/4-5-3/16 x 1/2

Super 77 Hose Clamp SS 1/2 to 1-1/8"

Item#: 85496
Barb-Lok Hose End 1/2

Barb-Lok Hose End 3/8" (-6) x 3/8-18 (-6)

Item#: 97501
Quick Disconnect Coupler Brass 1/4 x 3/8

Quick Disconnect Coupler Brass 1/4 x 3/8"

Item#: 29029
Quick Disconnect Coupler Brass 1/4

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Item#: 11962
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104
Utility Knife, Folding , 4

Utility Knife, Folding , 4" Closed

Item#: FA5474
SAE Flat Washer Thru-Hardened Steel 1/2

SAE Flat Washer Thru-Hardened Steel 1/2"

Item#: 88439

Product Description

Ensure excellent flow characteristics while reducing operator fatigue and risk of repetitive motion injury. These lightweight, resilient, industrial-quality connectors swivel 360° at two pivot points to allow the air line to drop to the floor, resulting in increased maneuverability.
• Works in any position
• For use with any air tool, including percussion tools
• Non-marring composite construction
• 1/4" male and female NPT connectors
Important: Do not exceed 150 PSI. Do not overtighten connections, maximum torque value 20 ft./lbs.

Technical Specifications

Item#: 58565
Type Swivel Air Line Connector
Connection Type A x B Male NPT x Female NPT
Fitting Dimension A 1/4-18
Fitting Dimension B 1/4-18
UNSPSC #: 27131600
TAA Compliant: Yes
Weight: 0.13 lb
