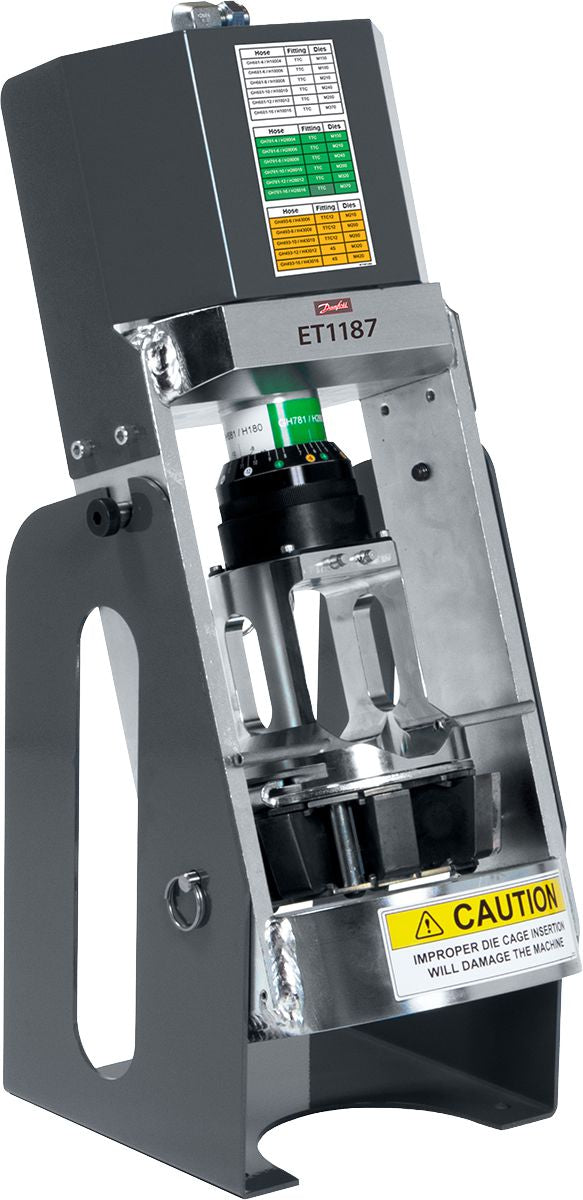

ET1187 Portable Variable Crimp Machine - Bench Mount only, no pump
(Pack of
1)
SKU:1588245 Item#: 1588245
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.
• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Couldn't load pickup availability
Catalog page#: 8-29
Frequently Bought Together
Braided Collet Yellow
Couldn't load pickup availability
Braided Collet Blue
Couldn't load pickup availability
Braided Collet Red
Couldn't load pickup availability
Hydraulic Plug, 3/4-16"(08) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Technical Specifications
| Item#: | 1588245 |
|---|---|
| Manufacturer Model #: | ET1187-001 |
| Description | ET1187 Variable Bench Mount Crimper Only |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | No |
| Weight: | 75.0 lb |
