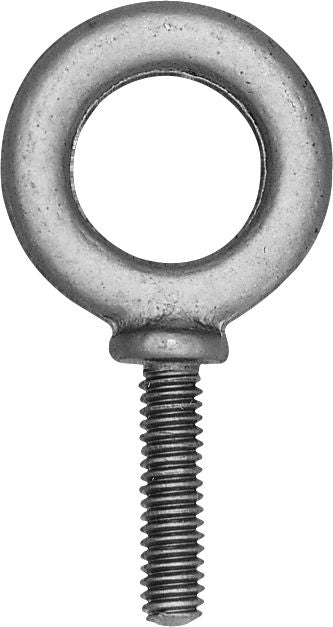

Eye Bolt, Machinery, 2600 Lb Str Pull 1/2 Dia X 1-1/2 Thrd 1-3/16 X 2-1/16 Eye
(Pack of
5)
SKU:85519 Item#: 85519
Secure, lift, and rig with confidence using our durable machinery eye bolts. Crafted from drop-forged, heat-treated steel, these lifting bolts are designed for industrial-strength performance in workshops, manufacturing plants, and construction sites. Each bolt threads seamlessly into pre-existing tapped holes, providing a reliable anchor point for ropes, cables, or chains during heavy machinery lifts. Built for permanence and safety, our machinery eye bolts are the ultimate solution for industrial rigging and heavy equipment handling.
• Self-colored
• Drop-forged steel
• Heat-treated
• National coarse thread
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
Catalog page#: 15-19
Frequently Bought Together

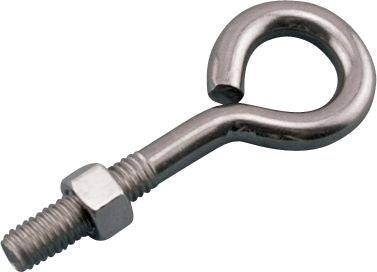

Eyebolt, With Nut, Galvanized, 7/8" x 24"
Couldn't load pickup availability
Shoulder Eyebolt, Machinery, Self-Colored, 1-1/4" x 3"
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 1/2" x 6"
Couldn't load pickup availability
Spring Link, 1/4", 175 lb WLL, Zinc
Couldn't load pickup availability
Quick Link 1/2" Chain Size 3300 Lb Safe Load
Couldn't load pickup availability
Swivel Eye Bolt Snap, 3/8" Eye Size, 2-15/16" Length, Zinc Finish
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 3,000 lb WLL
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Secure, lift, and rig with confidence using our durable machinery eye bolts. Crafted from drop-forged, heat-treated steel, these lifting bolts are designed for industrial-strength performance in workshops, manufacturing plants, and construction sites. Each bolt threads seamlessly into pre-existing tapped holes, providing a reliable anchor point for ropes, cables, or chains during heavy machinery lifts. Built for permanence and safety, our machinery eye bolts are the ultimate solution for industrial rigging and heavy equipment handling.• Self-colored
• Drop-forged steel
• Heat-treated
• National coarse thread
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 85519 |
|---|---|
| Type | Machinery Eye Bolt |
| Style | Shoulder Pattern |
| Material | Forged Steel |
| Finish | Self-Colored |
| Thread Size | 1/2"-13 |
| Shank Length | 1-1/2 " |
| Eye I.D. | 1-3/16 " |
| Eye O.D. | 2-1/16 " |
| Overall Length | 4 " |
| Working Load Limit | 2,600 lb |
| UNSPSC #: | 31162600 |
| TAA Compliant: | Yes |
| Weight: | 2.04 lb |
