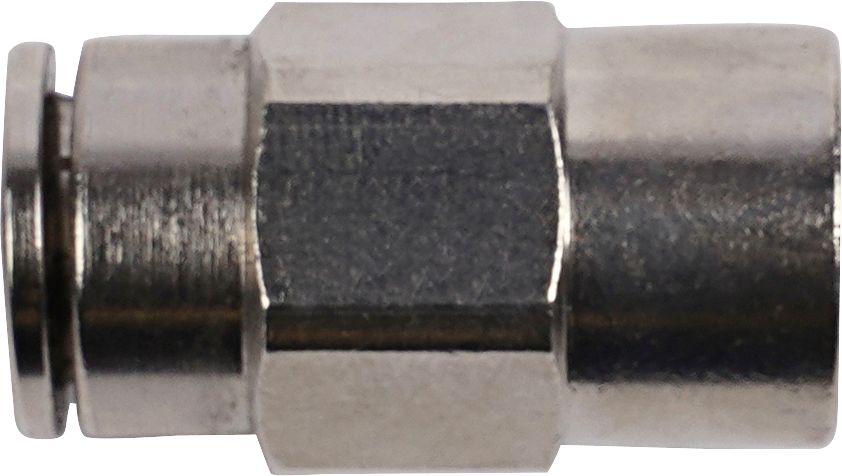

FPT Metric brass push-on connector 8mm tube x 1/8 inch female pipe thread (BSPT)
(Pack of
1)
SKU:DY41733012 Item#: DY41733012
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Item#: 1328127
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Item#: 94610
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Item#: 94613
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Item#: 94611
Couldn't load pickup availability
Product Description
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.Technical Specifications
| Item#: | DY41733012 |
|---|---|
| Style | Push-to-Connect |
| Configuration | Female Connector |
| Tube Size | 8 mm |
| Thread Size | G1/8 " |
| Thread Style | BSPP |
| Material | Brass |
| Wrench Size | 14 mm |
| Working Pressure | Up To Maximum Working Pressure of Tubing Being Used |
| Temperature Range | -40 to +200 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
Product Restrictions
