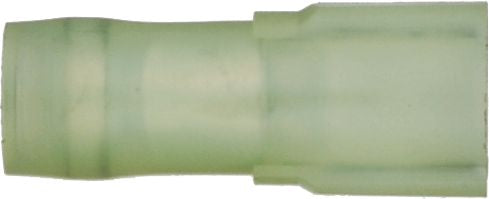

Female Quick Slide Terminal 12 to 10 AWG Yellow
(Pack of
25.0)
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Female – superior clamping power even after many connections
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Male Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear 3/8" Stud
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Female – superior clamping power even after many connections
Technical Specifications
| Item#: | 86064 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Tab Width | 1/4 " |
| Connection Type | Female |
| Color | Yellow |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
