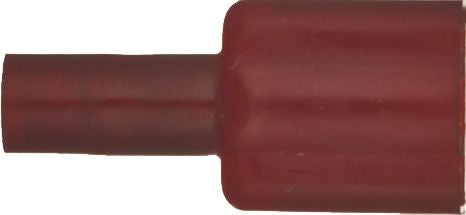

Female Quick Slide Terminal, Fully Insulated, Nylon, 22 to 18 AWG, 3/16" Tab Width, Red
(Pack of
25)
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Female – superior clamping power even after many connections
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
Flashlight with Continuity Tester
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Female – superior clamping power even after many connections
Technical Specifications
| Item#: | 86057 |
|---|---|
| Type | Crimp |
| Wire Gauge | 22-18 AWG |
| Tab Width | 3/16 " |
| Connection Type | Female |
| Color | Red |
| Description | Quick Slide - Fully Insulated |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
