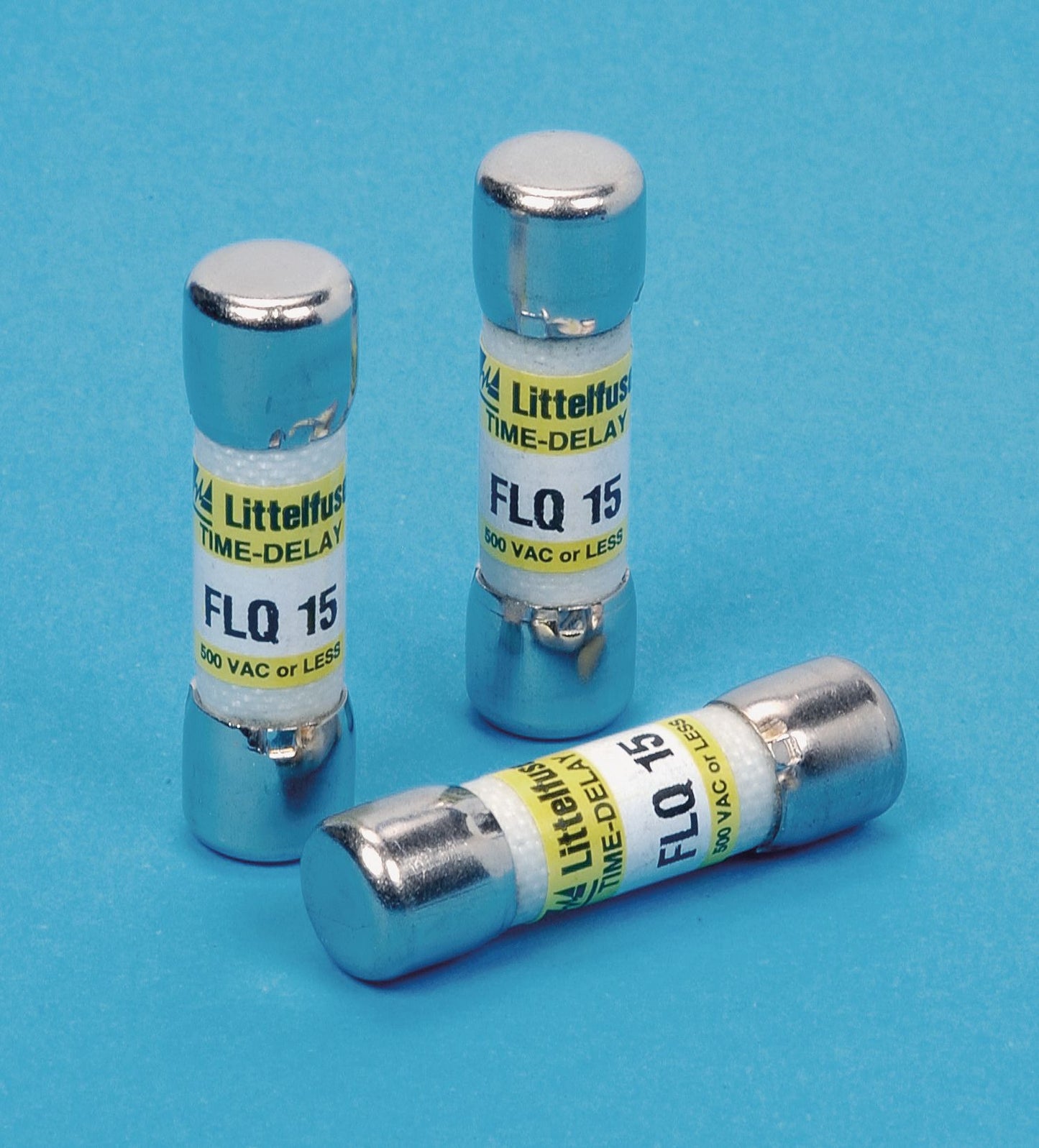

FLQ Series Midget Fuse 6A
(Pack of
1)
• Voltage rating: 500V AC• UL and CSA 500V ratings permit use on 480V AC circuits• Interrupting rating: 10,000A rms symmetrical• 1-1/2" long, 13/32" dia.
• Provide excellent supplemental protection of control power transformers, solenoids and circuits with high-inrush currents
• Also provide supplemental protection to small motors
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Clear
Item#: 1495183
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Item#: 1145786
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Item#: 54518
Couldn't load pickup availability
MINI Add-A-Circuit
Item#: 58332
Couldn't load pickup availability
MINI Smart Glow Fuse 10A Red
Item#: 16524
Couldn't load pickup availability
MINI Fuse 20A Yellow
Item#: 1145943
Couldn't load pickup availability
KLDR Series Class CC Fuse 10A
Item#: 16450
Couldn't load pickup availability
CCMR Series Class CC Fuse 2A
Item#: 53168
Couldn't load pickup availability
313 Series Glass Body Fuse 3-2/10A
Item#: 96013
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88446
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Item#: FA95679
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Item#: 53983
Couldn't load pickup availability
Product Description
• Voltage rating: 500V AC• UL and CSA 500V ratings permit use on 480V AC circuits• Interrupting rating: 10,000A rms symmetrical• 1-1/2" long, 13/32" dia.• Provide excellent supplemental protection of control power transformers, solenoids and circuits with high-inrush currents
• Also provide supplemental protection to small motors
Technical Specifications
| Item#: | 16437 |
|---|---|
| Style | FLQ Time-Delay Midget Fuses |
| Amperage | 6 A |
| Diameter | 13/32 " |
| Length | 1-1/2 " |
| Rating | 500olt AC V |
| Approvals | UL, CSA |
| Type | Fuses |
| Bussman Number | FNQ-6 |
| Littelfuse Fuse Type | FLQ-6 |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.025 lb |
