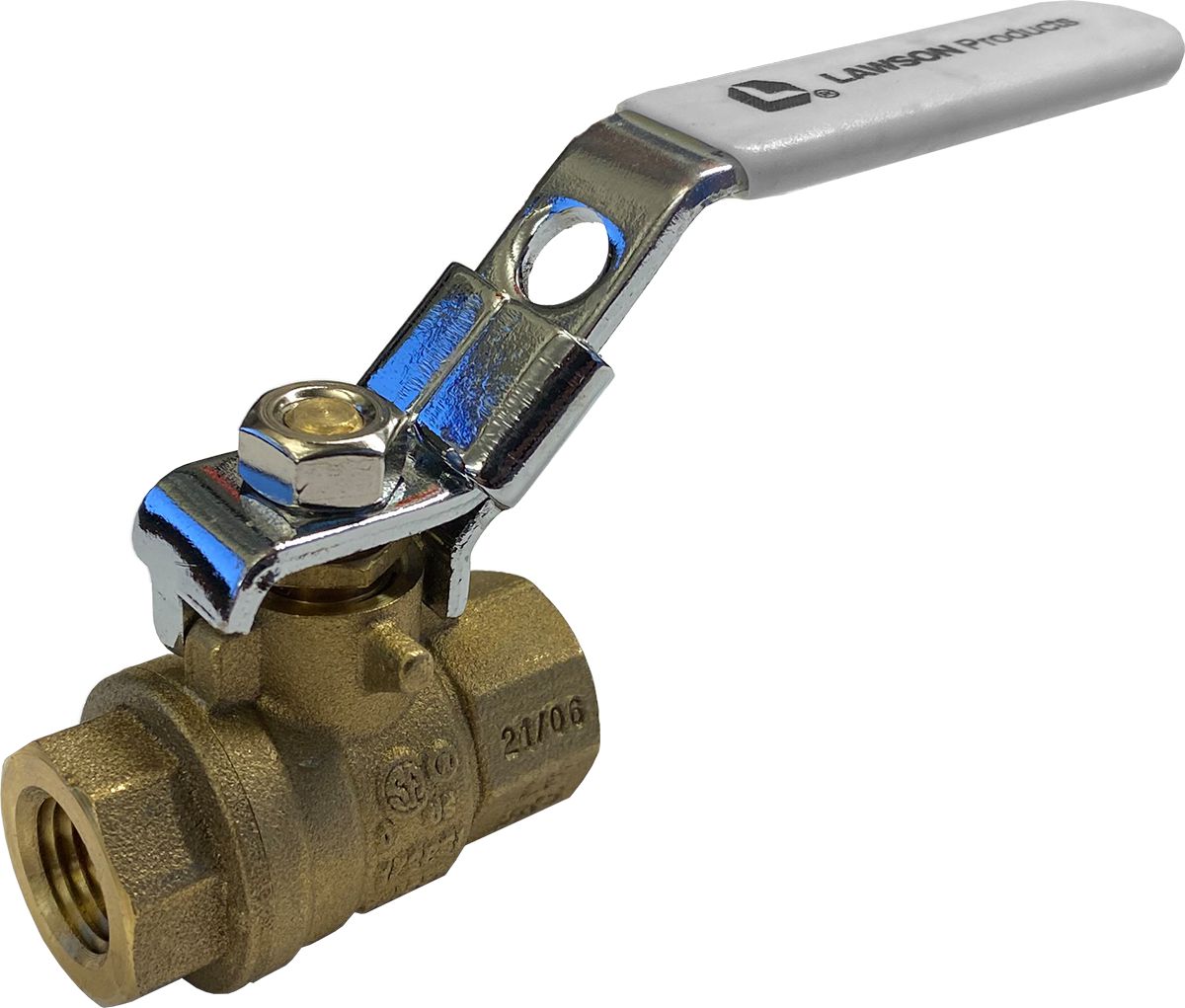

Forged Body Ball Valve with Lockout, Brass, 3/4 x 3/4", Female NPT x Female NPT, 600PSI
(Pack of
1)
SKU:63145 Item#: 63145
• Built-in lockout feature
• Accepts padlocks with a 9/32" shackle diameter
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI
• Operating temperature: –40°F to 350°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Frequently Bought Together
Pipe Close Nipple Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
• Built-in lockout feature• Accepts padlocks with a 9/32" shackle diameter
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Two FPM O-rings at the stem for maximum safety
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI
• Operating temperature: –40°F to 350°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Technical Specifications
| Item#: | 63145 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Forged Body with Lockout |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 3/4-14 |
| Fitting Dimension B | 3/4-14 |
| Working Pressure | 600 WOG PSI |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.69 lb |
Product Restrictions
