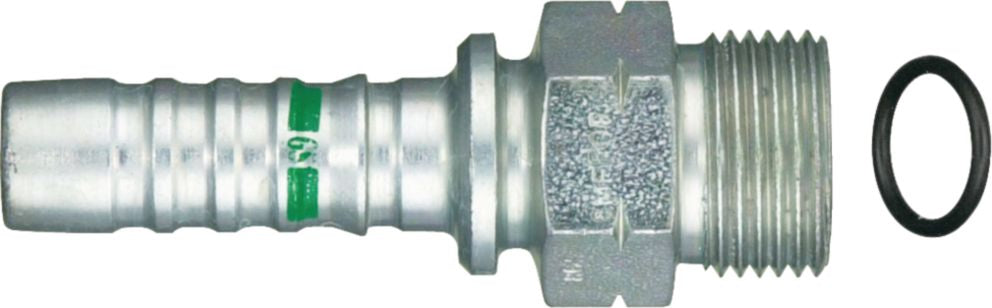

Global Spiral Crimp-On Coupling, Carbon Steel, Male Swivel Flat Face O-Ring Seal, Straight, 1/2" (-8) x 13/16-16 (-8)
(Pack of
1)
SKU:23110 Item#: 23110
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.
• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Frequently Bought Together
Z Series Crimp-On Hose End 1/2" x 13/16-16
Item#: 16709
Couldn't load pickup availability
Crimp-On Hose Coupling 3/4" x 1-1/16-12
Item#: 88372KH
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 1/2-14
Item#: 16584
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16703
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Item#: 16616
Couldn't load pickup availability
Hydraulic Cap Nut, 7/8-14"(10) Female JIC SAE 37 Degree Flare
Item#: 86152
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Item#: 86725
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Item#: 88718
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Item#: 91820
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Item#: 88446
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Item#: 1495188
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Item#: DY80000105
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1"
Technical Specifications
| Item#: | 23110 |
|---|---|
| Manufacturer Model #: | 8GS-8MFFOR |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Male |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 13/16-16 (-8) |
| Gates Number | 8GS-8MFFOR |
| Size | (-8)X(-8) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
