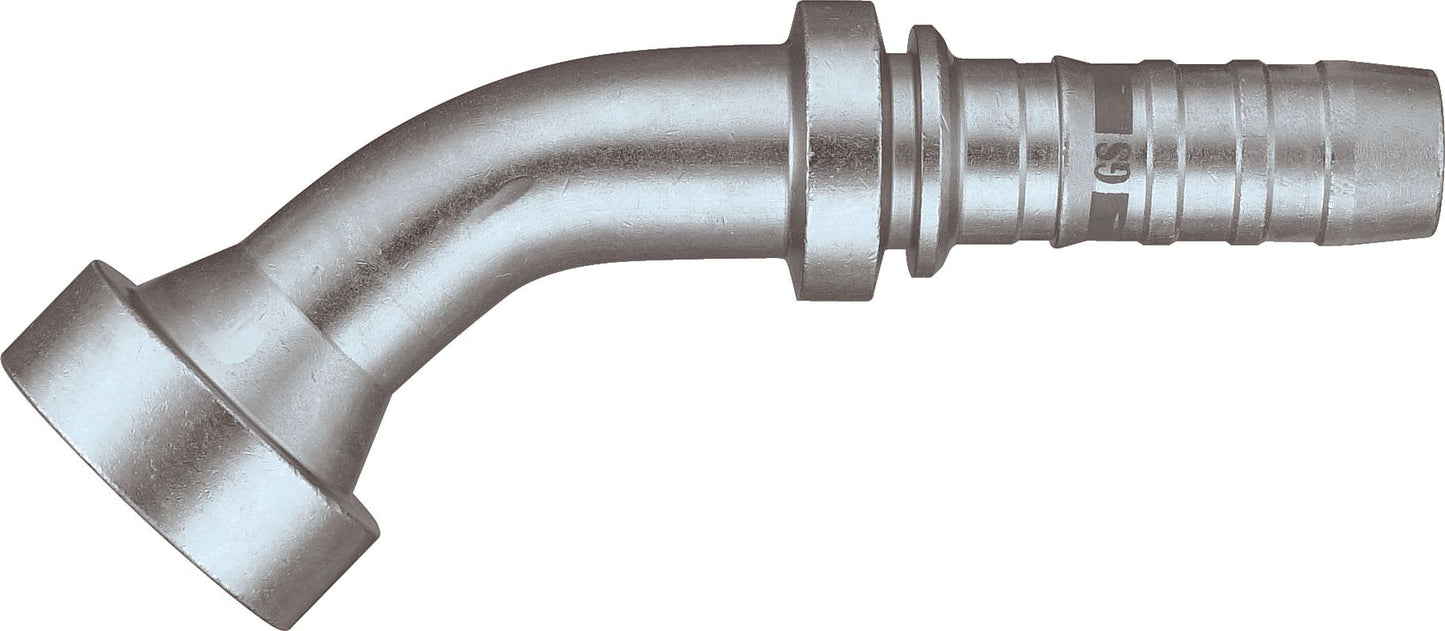

Global Spiral Crimp-On Elbow, Carbon Steel, Split Flange Caterpillar Style, 45°, 3/4 (-12) x 3/4" (-12)
(Pack of
1)
SKU:23181 Item#: 23181
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1".
Frequently Bought Together
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2 x 3/4-16"
Item#: 16615
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Item#: 16610
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 11/16-16
Item#: 16706
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
Item#: 91819
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: 11915
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
Item#: 86327
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Item#: 94612
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Item#: 1368141
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Item#: 1368140
Couldn't load pickup availability
Product Description
• For use with all Gates® spiral wire hose through 1-1/4" (-20) I.D.• When using Mobile Crimp press, MGS one-piece fittings must be used with hose I.D. over 1".Technical Specifications
| Item#: | 23181 |
|---|---|
| Manufacturer Model #: | 12GS-12FLC45-035 |
| Manufacturer Series Number | Global Spiral Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar Style |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 3/4 (-12) |
| Flange Diameter | 1.63 " |
| Gates Number | 12GS-12FLC45-035 |
| Size | (-12)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.89 lb |
