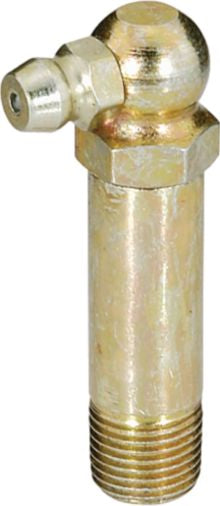

Grease Fittings Ball Check Type 1/8" NPT 90° 1-3/16" Long
(Pack of
10)
SKU:KT11830 Item#: KT11830
• Ball in tip of fitting keeps out dirt and foreign matter
• Enlarged inner passage admits more lubricant, helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – Perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – All threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Universal application – industrial motive equipment
• Accepts all standard makes of hydraulic couplers
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Product Description
• Ball in tip of fitting keeps out dirt and foreign matter• Enlarged inner passage admits more lubricant, helps cut time on important lubrication jobs
• Balanced action spring retracts easily to allow maximum lubricant flow under pressure, yet holds ball firmly in sealing position at all other times
• Better coupler connection – Perfect spherical shape of base allows coupler jaws to form leakproof seal, even at a wide angle
• Easy installation – All threads accurately machine cut
• Fitting body made of special hardened steel for long life
• Universal application – industrial motive equipment
• Accepts all standard makes of hydraulic couplers
Technical Specifications
| Item#: | KT11830 |
|---|---|
| Category | Grease Fittings |
| Fitting Type | Ball Check Type |
| Group | 1/8" NPT |
| Fitting Angle | 90 ° |
| Fitting Description | 90° |
| Description | 90° |
| Length | 1-13/16 " |
| Size | 1-3/16" Long |
| Thread Type | 1/8" NPT |
| Material | Hardened Steel |
| UNSPSC #: | 40141736 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
