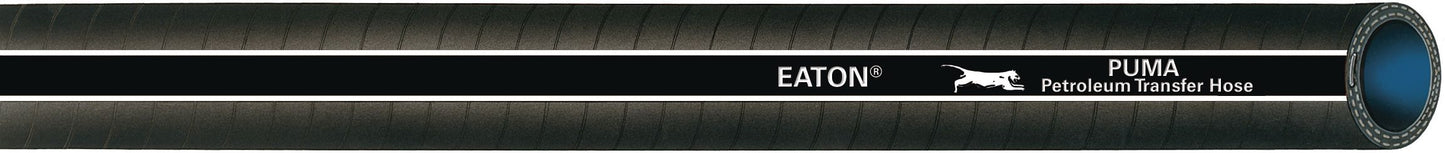

H0363 Puma Petroleum Transfer Hose, Vinyl Nitrile Inner Tube, 2-Ply and Helical Wire Reinforcement, Black, 150PSI, 1" ID
(Pack of
150)
SKU:41382 16 Item#: 41382 16
• Advantages:– Abrasion- and weather-resistant– Animal and vegetable oil resistant– Biodiesel compatible
• Agency Ratings: N/A• Fittings Certified:– U-Series (-16 and -20)– Z-Series (-16 and -20)– 430 U-Series (-16 through -32)– Inserted Hose Ends: Cam and Groove, Combination Nipples• Agency Approvals: N/A• Construction:– Inner Tube: Vinyl nitrile– Reinforcement: Fiber, two or four ply and helical wires– Cover: Vinyl nitrile• Color: Black• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Transfer of petroleum products– Transfer of crude oil, salt water, fresh water and slurries– Loading or unloading, pumping, suction or gravity flow discharge• Markets:– Petroleum/petrochemical industry– Paper/pulp industry– Oil exploration and drilling– Shipbuilding– Tank trucks– Railroad tank cars– Waste hauling
Frequently Bought Together
Lightweight Garden Hose Assembly 3/4"
Couldn't load pickup availability
Replacement Fitting P/U Self-Coiling Hose 3/8"
Couldn't load pickup availability
Push-on/Lock-on Rubber Hose 3/8" (-6) Black
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/4"
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Black Gold® Oilfield Service Hose 4" ID x 200' Length, Black
Couldn't load pickup availability
Food Master® Dry Goods Hose 5" ID x 100' Length, Gray
Couldn't load pickup availability
Black Gold® Oilfield Service MegaTuff Hose 4" ID x 200' Length, Black
Couldn't load pickup availability
Product Description
• Advantages:– Abrasion- and weather-resistant– Animal and vegetable oil resistant– Biodiesel compatible• Agency Ratings: N/A• Fittings Certified:– U-Series (-16 and -20)– Z-Series (-16 and -20)– 430 U-Series (-16 through -32)– Inserted Hose Ends: Cam and Groove, Combination Nipples• Agency Approvals: N/A• Construction:– Inner Tube: Vinyl nitrile– Reinforcement: Fiber, two or four ply and helical wires– Cover: Vinyl nitrile• Color: Black• Temperature Range: –40°F to +180°F (–40°C to +82°C)
• Application Notes:– Transfer of petroleum products– Transfer of crude oil, salt water, fresh water and slurries– Loading or unloading, pumping, suction or gravity flow discharge• Markets:– Petroleum/petrochemical industry– Paper/pulp industry– Oil exploration and drilling– Shipbuilding– Tank trucks– Railroad tank cars– Waste hauling
Technical Specifications
| Item#: | 41382 16 |
|---|---|
| Manufacturer Model #: | H036316BK-150 |
| Type | Petroleum Transfer |
| Manufacturer Series Number | H0363 |
| Manufacturer Series Name | Puma Petroleum Transfer |
| I.D. | 1 " |
| Dash Size | -16 |
| Working Pressure | 150 PSI |
| Minimum Bend Radius | 6 " |
| Inner Tube Material | Vinyl Nitrile |
| Hose Reinforcement | 2-Ply and Helical Wire |
| Hose Cover Material | Vinyl Nitrile |
| Fitting Series | Crimp: U Series, Z Series, 430U Series, Insert: Cam and Groove, Combination Nipple |
| Temperature | -40F to +180F |
| Color | Black |
| Size | -16X150 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | No |
