Home Hydraulics Hose and Tubing Barb Lok H201 Easy Couple Hose 3/8" Black 50'
Barb Lok
H201 Easy Couple Hose 3/8
H201 Easy Couple Hose 3/8

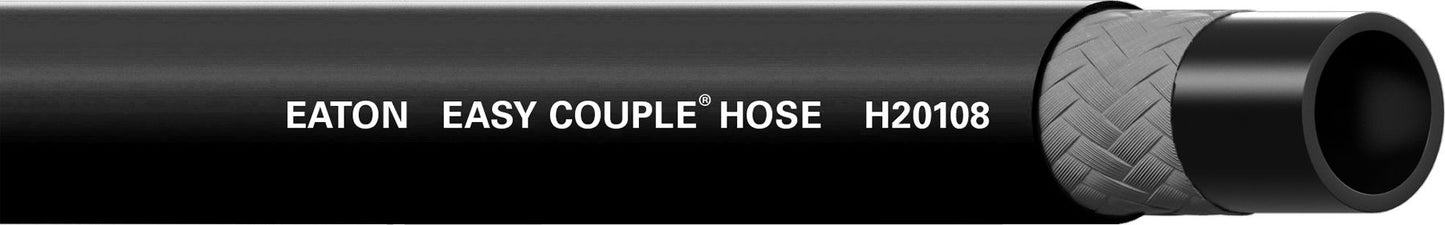

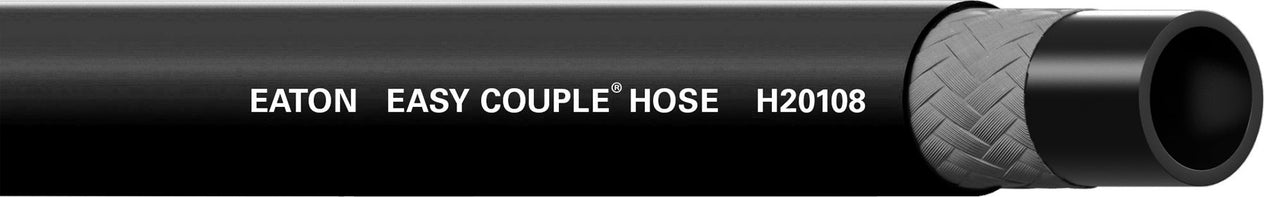

H201 Easy Couple Hose 3/8" Black 50' Neoprene Cover 1 Fiber Braid Reinforcement 300 PSI
(Pack of 50)

Item#: 1593533

Danfoss®

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Read More
Check Availability

Catalog page#: 8-140

Frequently Bought Together

Push-on/Lock-on Synthetic Rubber Cover Hose 3/8

Low Pressure Push-/Lock-on Hose Rubber 3/4" Black

Item#: PL12101B12
No product placeholder

H10112

Item#: 1184893
Push-on/Lock-on Fiber Braided Cover Hose 5/8

Push-on/Lock-on Fiber Braided Cover Hose 1/4"

Item#: PL12100B04
FLEXAIR 3/8

FLEXAIR 1/2" I.D. x 50' air hose

Item#: 1637166
Super HubT Air/Water Hose Reel 1/2

Super HubT Air/Water Hose Reel 1/2" x 50'

Item#: 20777
Air/Multipurpose Rubber Hose 3/8

Air/Multipurpose Rubber Hose 3/8" Black

Item#: 64730
DOT Elbow Male Nylon 3/8 x 1/4-18, DOT Air Brake Push to Connect Elbow, Male, Nylon, 3/8 x 1/4-18, Tube x Pipe

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 1-13/16 to 2-3/4"

Item#: 87142
Hose Clamp 304 SS 2-13/16 to 3-3/4

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728
SAE Flat Washer Thru-Hardened Steel 5/16

SAE Flat Washer Thru-Hardened Steel 5/16"

Item#: 88436
Self-Drilling Screw Hex Head #6-20 x 1/2

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539
USS Flat Washer Thru-Hardened Steel 5/16

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Product Description

H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile

Technical Specifications

Item#: 1593533
Manufacturer Model #: H20106BK
I.D. 3/8 "
Working Pressure 300 PSI
Burst Pressure 1,200 PSI
Minimum Bend Radius 3 "
Weight (Lbs. / Ft.) 0.13
Vacuum Rating (Inches of Hg) 28
UNSPSC #: 40142009
TAA Compliant: Yes
Weight: 7.47 lb
