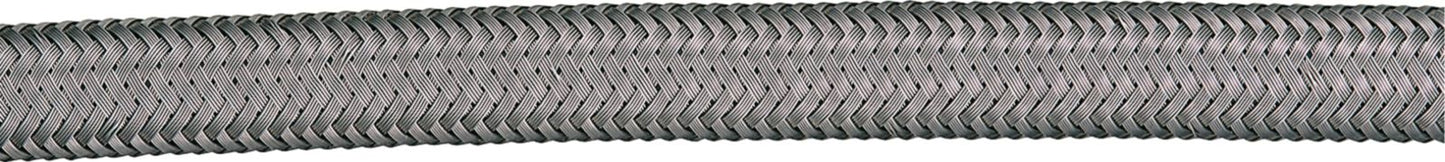

Everlfex H243 PTFE - Non-conductive SAE 100R14 Hose, 1 SS Braid& Smooth PTFE Inner Tube, 3000 PSI, 3/16 (-3)" (ID), 5/16" (OD)
(Pack of
50)
SKU:29091 03 Item#: 29091 03
• Agency Ratings: Not rated
• Fittings Certified: E-Series
• Agency Approvals: FDA accepted material
• Construction:
– Inner Tube: Smooth PTFE
– Reinforcement: One stainless steel braid (except -16 which has double stainless steel braids)
– Cover: Stainless steel braid
• Temperature Range: –65°F to +450°F (–54°C to +232°C)
• Application Notes:– Used for hydraulic, air and steam lines– Particularly suited for air compressor discharge lines where vibration and high temperatures are present– Not for use in applications requiring static dissipation
50 foot rolls consist of no more than two pieces totaling 50 feet (±10%).
Note: When using T-420 or T-480 crimpers, use Adapter Die Ring T-420-25 (Item No. 63689) and T-400 Spacer Rings. When using ET4000/4001 crimpers, use Adapter Die Ring T-410-25 (Item No. 63782) and T-410 Series Spacer Rings.
Couldn't load pickup availability
Catalog page#: 8-121
Product Description
• Agency Ratings: Not rated• Fittings Certified: E-Series
• Agency Approvals: FDA accepted material
• Construction:
– Inner Tube: Smooth PTFE
– Reinforcement: One stainless steel braid (except -16 which has double stainless steel braids)
– Cover: Stainless steel braid
• Temperature Range: –65°F to +450°F (–54°C to +232°C)
• Application Notes:– Used for hydraulic, air and steam lines– Particularly suited for air compressor discharge lines where vibration and high temperatures are present– Not for use in applications requiring static dissipation
50 foot rolls consist of no more than two pieces totaling 50 feet (±10%).
Note: When using T-420 or T-480 crimpers, use Adapter Die Ring T-420-25 (Item No. 63689) and T-400 Spacer Rings. When using ET4000/4001 crimpers, use Adapter Die Ring T-410-25 (Item No. 63782) and T-410 Series Spacer Rings.
Technical Specifications
| Item#: | 29091 03 |
|---|---|
| Type | PTFE - Non-conductive |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R14 |
| Manufacturer Series Number | H243 |
| Manufacturer Series Name | Everlfex |
| Hose I.D. | 3/16 (-3) " |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Bend Radius | 2 " |
| Inner Tube Material | Smooth PTFE |
| Hose Reinforcement | 1 Stainless Steel Braid |
| Hose Cover Material | Stainless Steel Braid |
| Fitting Series | E Series |
| Temperature | -65F to +450F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 3.5 lb |
