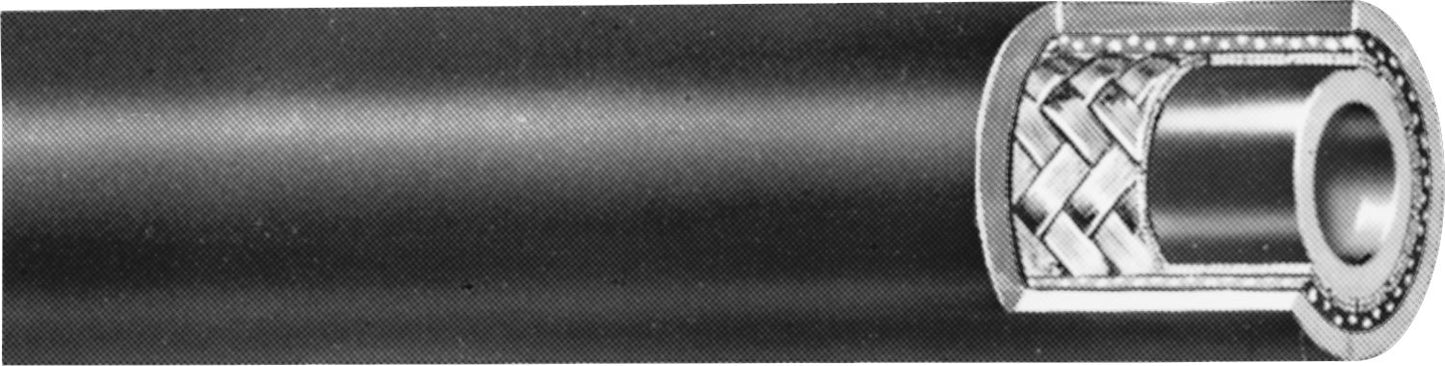

WeatherHd H757 Air Conditioning Hose, 1 Fiber Braid Reinforcement & Rbbr/Nyln/Rbbr Inner Tube, 400PSI, 5/16(-6)"(ID),9/16"(OD)
(Pack of
50)
SKU:56853 06 Item#: 56853 06
• Agency Ratings: SAE J2064 Type C, Class 1• Fittings Certified: 757 E-Series • Agency Approvals: None• Construction:– Inner Tube: Rubber/nylon/rubber– Reinforcement: One fiber braid– Cover: Butyl (perforated)• Temperature Range: –22°F to +248°F (–32°C to +120°C)
Use with 757 E-Series Air Conditioning/Refrigeration Fittings
• Application Notes:– Refrigerant hose for use with R134A and R12 applications– Ideal for heavy-duty truck use, as well as industrial and automotive applications
50' length consists of no more than 2 pieces with non shorter than 10'. Total length may vary (+/- 10%)
Couldn't load pickup availability
Catalog page#: 8-127
Frequently Bought Together
Product Description
• Agency Ratings: SAE J2064 Type C, Class 1• Fittings Certified: 757 E-Series • Agency Approvals: None• Construction:– Inner Tube: Rubber/nylon/rubber– Reinforcement: One fiber braid– Cover: Butyl (perforated)• Temperature Range: –22°F to +248°F (–32°C to +120°C)Use with 757 E-Series Air Conditioning/Refrigeration Fittings
• Application Notes:– Refrigerant hose for use with R134A and R12 applications– Ideal for heavy-duty truck use, as well as industrial and automotive applications
50' length consists of no more than 2 pieces with non shorter than 10'. Total length may vary (+/- 10%)
Technical Specifications
| Item#: | 56853 06 |
|---|---|
| Type | Refrigerant Hose |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064 Type C, Class 1 |
| Manufacturer Series Number | H757 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 5/16 (-6) " |
| Working Pressure | 400 PSI |
| Burst Pressure | 2,000 PSI |
| Bend Radius | 2 " |
| Inner Tube Material | Rubber/Nylon/Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Perforated Butyl |
| Fitting Series | 757E Series |
| Temperature | -22F to +248F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 7.0 lb |
