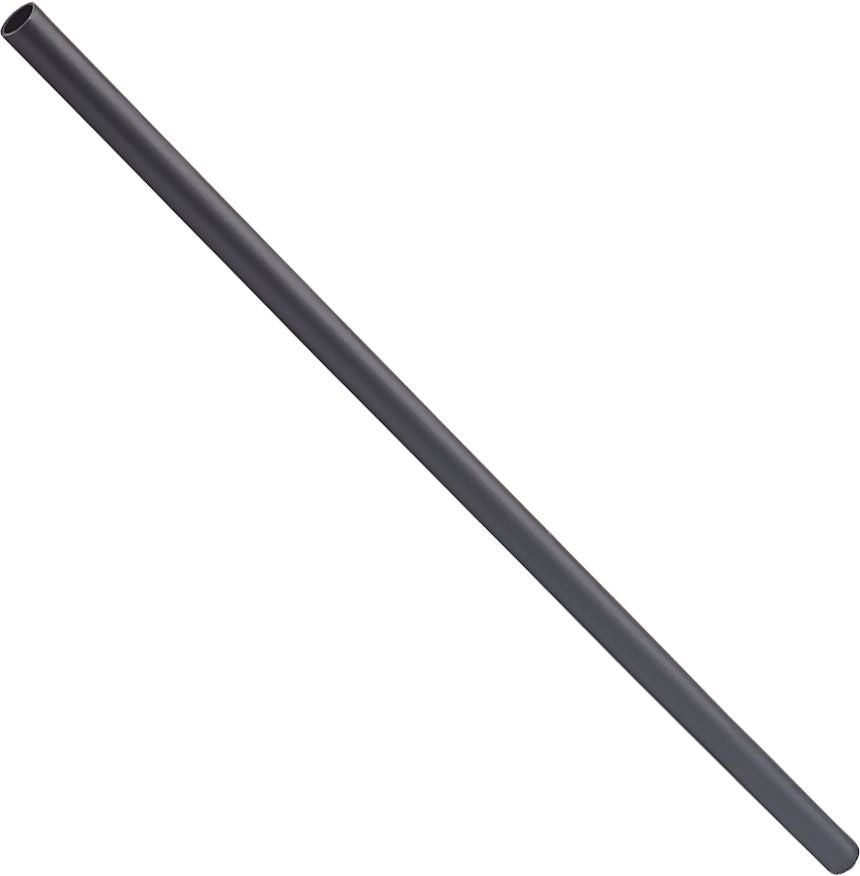

Heat Shrink Tubing, 30 to 18 AWG, Black, 6" Length, 0.125" ID Before and 0.023" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
10)
SKU:51878 Item#: 51878
• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-33
Frequently Bought Together
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 1 to 16/3 SJO AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing Black 0.6 x 12"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/16-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/4-18
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Couldn't load pickup availability
Product Description
• 2.5:1 shrink ratio• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 51878 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 30-18 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .125 " |
| I.D. After Shrinkage | .023 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.038 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 450 % |
| Tensile Strength | 2,600 PSI |
| Heat Shock | 168 hours at 482 degrees F |
| Secant Modulus | 16,000 PSI |
| Longitudinal Change | Less than 10% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
