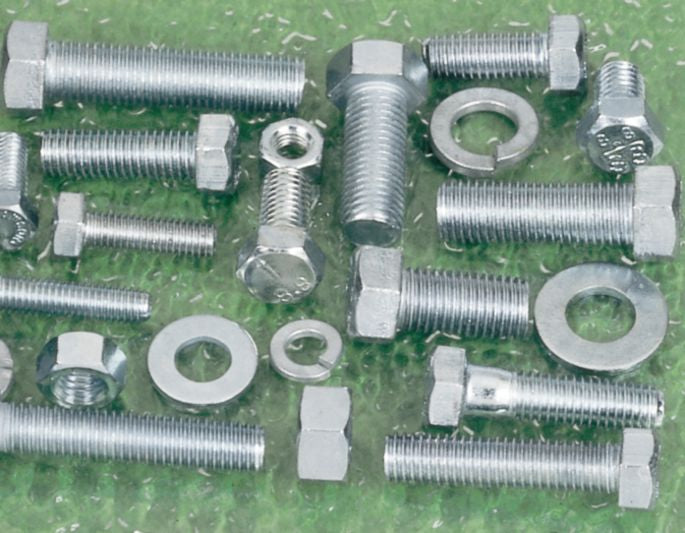

Hex Cap Screw Assortment in 24-Hole Drawer, Property Class 10.9 and 8.8, Steel, Coarse Thrd, M6 to M10 Dia., 23 Items, 1070 Pieces
(Pack of 1)

Lawson Products

23 Items, 1,070 Pieces
• Diameters: M6 – M10
• Lengths: 12mm – 40mm
• Includes Hex Nuts, Lock Washers and Flat Washers
No substitutions on Standard Pre-Planned Assortments

Check Availability

Quantity

Catalog page#: 1-63

Frequently Bought Together

Product Description

23 Items, 1,070 Pieces
• Diameters: M6 – M10
• Lengths: 12mm – 40mm
• Includes Hex Nuts, Lock Washers and Flat Washers
No substitutions on Standard Pre-Planned Assortments

Item#:	Description	QTY:
4266	M6X1.0X15 PC 10.9 Metric HHCS	15
4267	M6X1.0X20 PC 10.9 Metric HHCS	15
4268	M6X1.0X25 PC 10.9 Metric HHCS	15
90585	M8X1/25X12 PCs 8.8 H/H Bolt W/12MM Hd	15
90586	M8X1/25X16 PC 8.8 H/H Bolt W/12MM Hd	15
90587	M8X1/25X20 PC 8.8 H/H Bolt W/12MM Hd	15
90588	M8X1.25X25 PC 8.8 H/H Bolt W/12MM Hd	10
90589	M8X1/25X30 PC8.8 H/H Bolt W12MM Hd	10
90590	M8X1.25X35 PC 8.8 H/H Bolt W/12MM Hd	10
90591	M8X1/25X40 PC 8.8 H/H Bolt W/12MM Hd	10
90592	M10X1.25X20 PC8.8 H/H Bolt W/14MM Hd	10
90593	M10X1.25X25 PC8.8 H.H Bolt W/14MM Hd	10
90594	M10X1/25X30 PC8.8 H/H Bolt W/14MM Hd	10
90596	M10X1/25X40 PC 8.8 H.H Bolt W/14MM Hd	10
4302	M6X1 Hex Nut Gr 8.8	100
90597	M8X1/25X8.8 H/H Nut M12 A.F.	100
90598	M10X1.25 8.8 H/H Nut M14 A.F.	100
80261	M6 Flat Washer DIN 125A	100
80263	M8 Flat Washer DIN 125A	100
80264	M10 Flat Washer DIN 125A	100
80275	M6 Lockwasher DIN 127	100
80277	M8 Lockwasher DIN 127	100
80278	M10 Lockwasher DIN 127	100
A20		1

Technical Specifications

Item#:	LP258
Fractional/Metric	Metric
Grade	10.9 & 8.8
Material	Carbon Steel
Finish	Bright Zinc
Diameter	M6 - M10
Thread	Coarse
Type	Cap Screws
Number of Items	23
Number of Pieces	1,070
Head Style	Hex
Tensile Strength	1,040
Color	Brown
UNSPSC #:	31161501
TAA Compliant:	No
Weight:	16.85 lb
