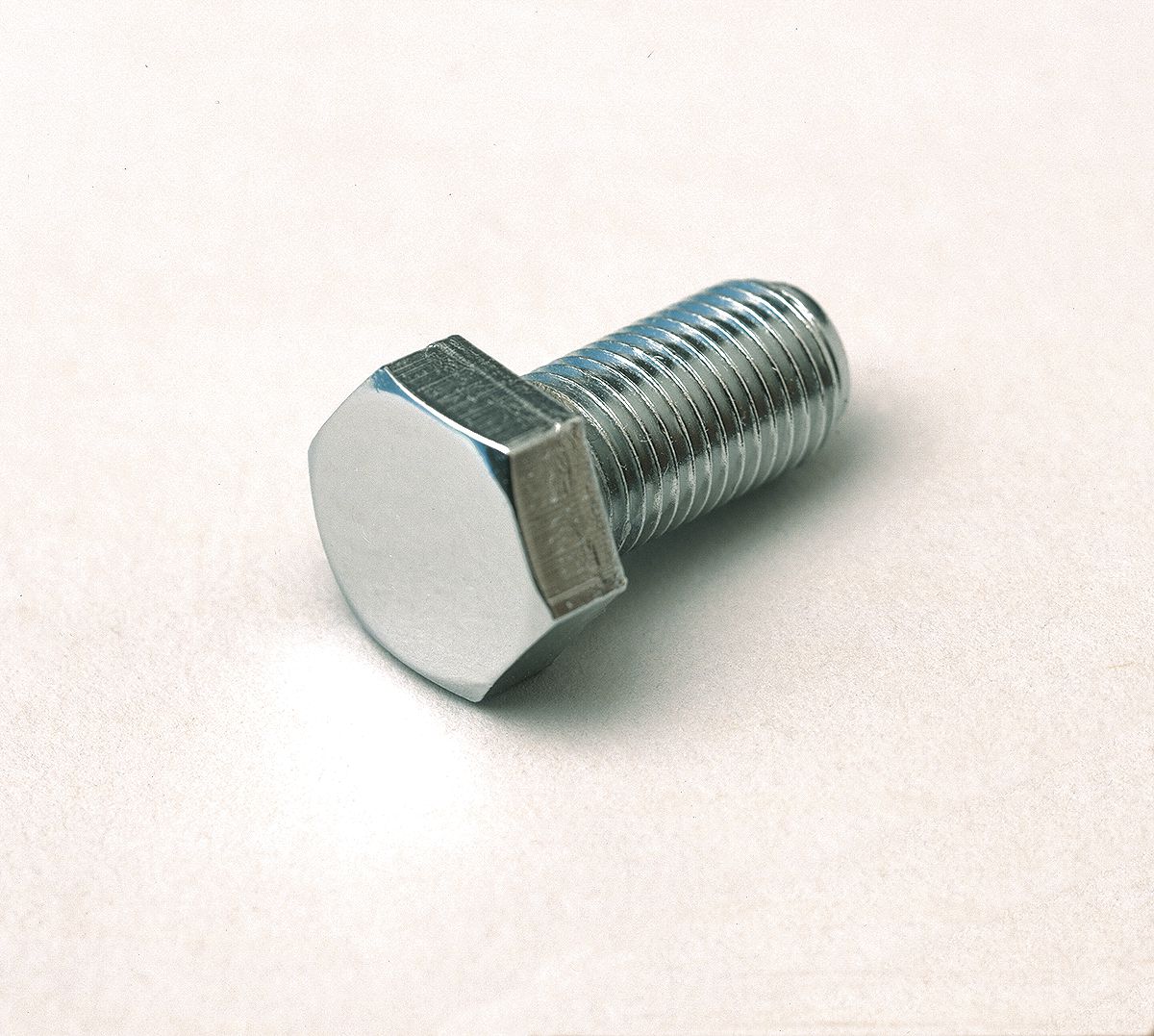

Hex Cap Screw Grade 5 1/4-20 x 7/8"
(Pack of
10.0)
• To insure a mirror-like finish, all knurls and rough areas are ground down before plating
• Hex head cap screw dimensions per ASME B18.2.1
• Rc 25-34 average hardness
• 120,000 PSI minimum tensile strength
• Primarily used in motorcycle shops, custom truck and auto shops, fire departments and for aesthetic industrial applications
Frequently Bought Together
Hex Cap Screw Grade 5 3/8-16 x 2-1/2"
Item#: FA65038
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 3/4"
Item#: 616
Couldn't load pickup availability
Hex Cap Screw 18-8 SS 5/16-18 x 1-1/4"
Item#: 91026
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 3/4"
Item#: 616
Couldn't load pickup availability
Hex Cap Screw 18-8 SS 5/16-18 x 1-1/4"
Item#: 91026
Couldn't load pickup availability
Hex Cap Screw Grade 9 Alloy Steel 3/4-10 x 2-1/2"
Item#: A717
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Item#: 87508
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Item#: FA88437
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Item#: 87511
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Item#: 87510
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Item#: DA6152
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Item#: FA95679
Couldn't load pickup availability
Product Description
• To insure a mirror-like finish, all knurls and rough areas are ground down before plating• Hex head cap screw dimensions per ASME B18.2.1
• Rc 25-34 average hardness
• 120,000 PSI minimum tensile strength
• Primarily used in motorcycle shops, custom truck and auto shops, fire departments and for aesthetic industrial applications
Technical Specifications
| Item#: | 10648 |
|---|---|
| Style | Industry Standard |
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Thread | Coarse |
| Length | 7/8 " |
| Type | Hex Cap Screw |
| Across Flats | 7/16 " |
| Material | Carbon Steel |
| Grade | 5 |
| Finish | Chrome |
| Tensile Strength | 120,000 PSI |
| Head Style | Hex |
| Head Height | 5/32 " |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
