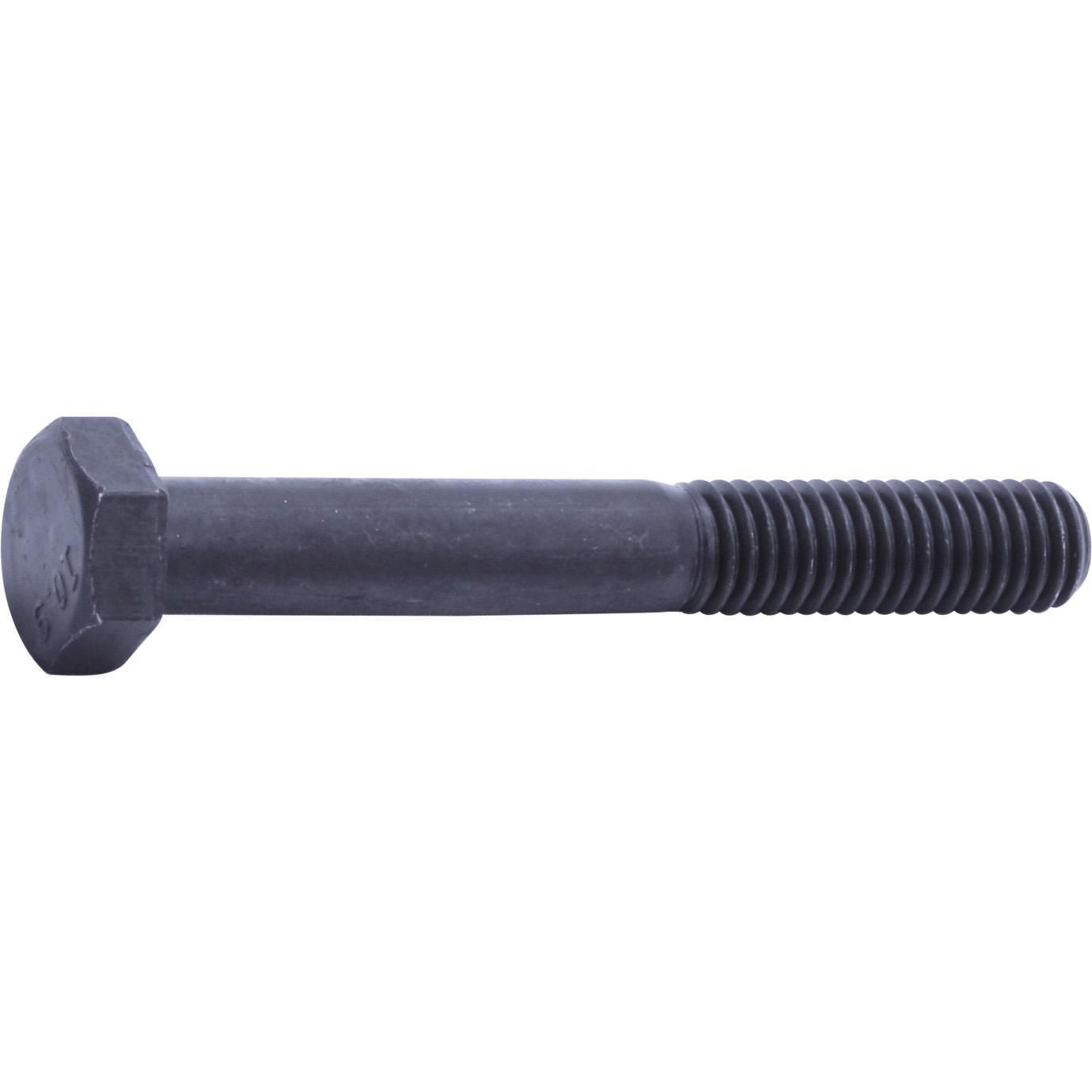

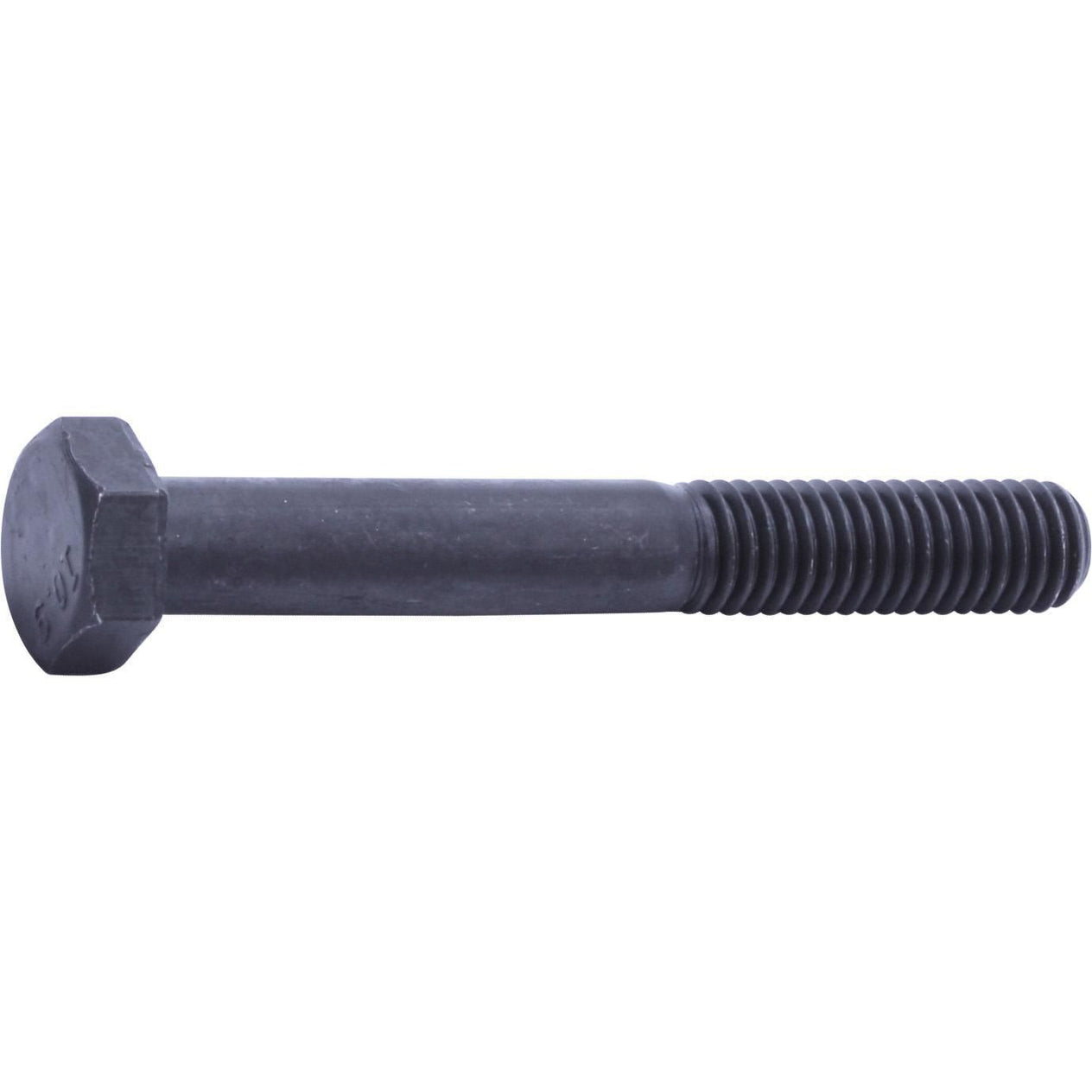

DIN 931 Hex Cap Screw, Property Class 10.9, Steel, Plain Finish, Coarse Thrd, 18.7mm Hd Height, 46mm Across Flats, M30-3.5 x 180mm
(Pack of
1)
SKU:1435938 Item#: 1435938
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Frequently Bought Together
Hex Cap Screw Grade 5 3/8-16 x 2"
Item#: FA65036
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 3/4"
Item#: 616
Couldn't load pickup availability
Hex Cap Screw Grade 8 7/16-14 x 1-1/2"
Item#: FA68048
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 2"
Item#: FA65036
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/16-18 x 3/4"
Item#: 616
Couldn't load pickup availability
Hex Cap Screw Grade 8 7/16-14 x 1-1/2"
Item#: FA68048
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Item#: FA68404
Couldn't load pickup availability
Self-Drilling Screw Hex Head #12-14 x 1"
Item#: 2537
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/2-13
Item#: FA95681
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 1"
Item#: FA65002
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
Item#: 85241
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 3/4"
Item#: 601
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Item#: 94728
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Item#: 94727
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Item#: FA5474
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 1435938 |
|---|---|
| Style | Industry Standard |
| Diameter | M30 |
| Thread Pitch | 3.5 mm |
| Thread | Coarse |
| Length | 180 mm |
| Type | Hex Cap Screw |
| Across Flats | 46 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Plain |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 931 |
| Head Style | Hex |
| Head Height | 18.7 mm |
| Thread Length | Partial |
| Thread Length Minimum | 66 mm |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
