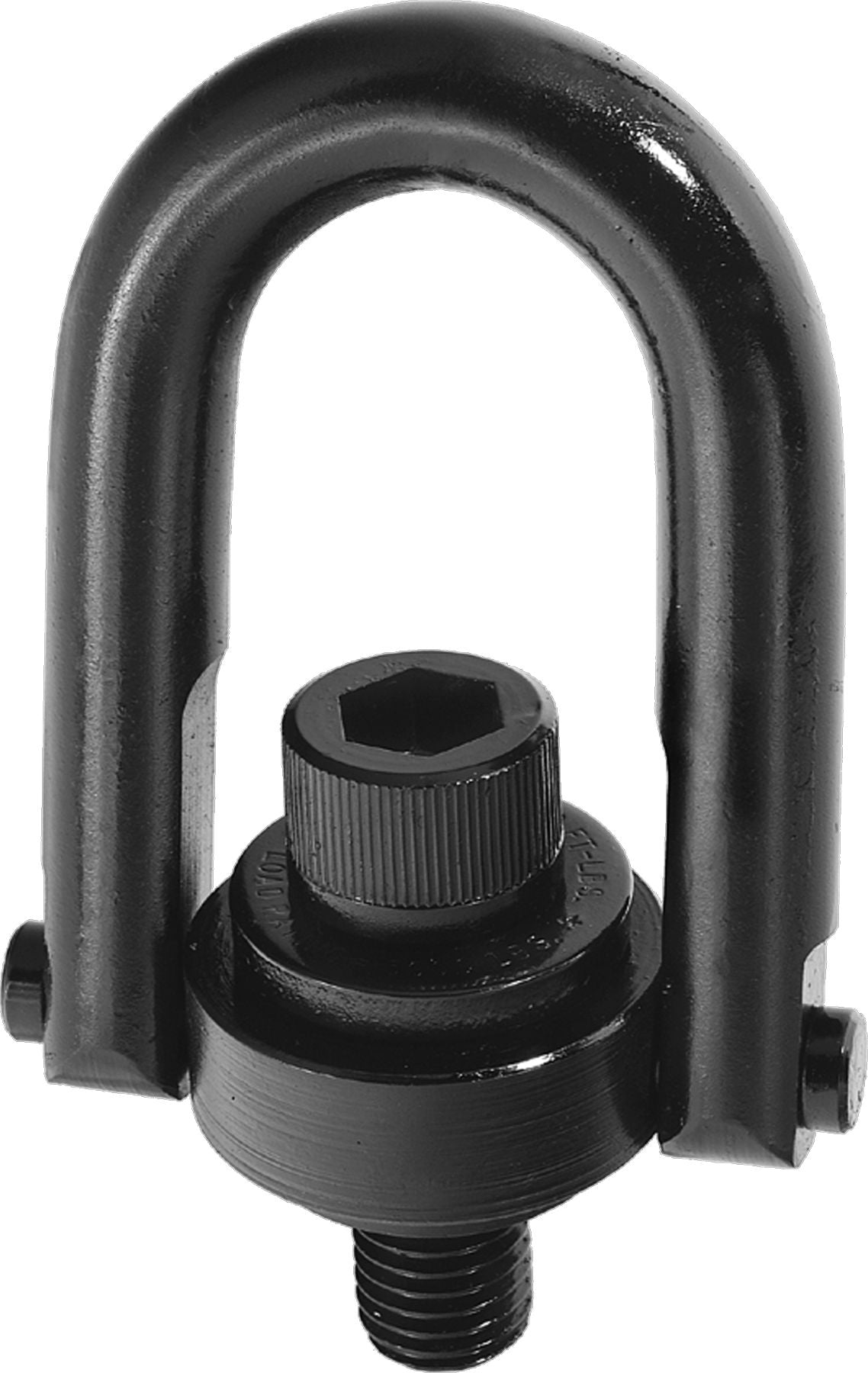

Hoist Ring, Heavy Duty®, 8,000 lb Load Limit, 7/8-9 Thread Size, 1.20" Thread Length
(Pack of
1)
SKU:1423190 Item#: 1423190
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Frequently Bought Together
Shoulder Eyebolt, Machinery, Self-Colored, M14 x 2.0 x 44.5
Couldn't load pickup availability
Hook Ceiling Trade Size 8
Couldn't load pickup availability
Eyebolt, Machinery, Self-Colored, 3/8" x 1-1/4"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 550 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 2,500 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 4,200 kg Load Limit
Couldn't load pickup availability
Wire Rope Sleeve, 3/16", Aluminum
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 1,500 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/8", 2,000 lb WLL
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423190 |
|---|---|
| Manufacturer Model #: | 33101 |
| Type | Heavy Duty |
| Thread Size | 7/8-9 |
| Thread Length | 1.2 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 8,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 160 ft·lbf |
| Dimension A | 1.40 " |
| Dimension B | 5.10 " |
| Dimension C | 2.05 " |
| Dimension D | 1.00 " |
| Dimension E | 1.20 " |
| Dimension F | 7.37 " |
| Dimension G | 7/8-9 " |
| Dimension K | 2.81 " |
| Dimension L | 0.18 " |
| Dimension M | 3.32 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
