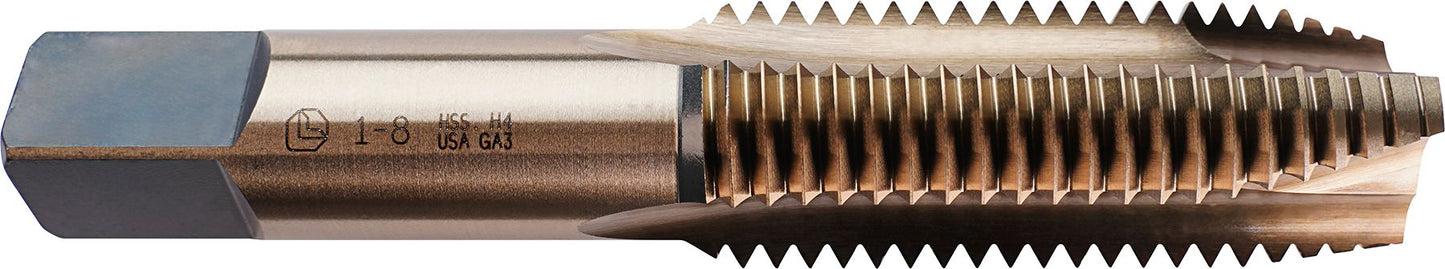

Spiral Point Hand Tap, High Speed Steel, 3 Flute, 1-8, 2-1/2" Thread Length
(Pack of
1)
SKU:61148 Item#: 61148
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item Nos. 61144 through 61149 do not have reduced threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-43
Frequently Bought Together
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/4"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap M5 x 0.8
Couldn't load pickup availability
HSS Spiral Point Hand Tap 10-32
Couldn't load pickup availability
HSS Spiral Point Hand Tap M14 x 2
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap 5/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap 10-24
Couldn't load pickup availability
HSS Combination Drill-Tap 10-24
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
NOTE: Item Nos. 61144 through 61149 do not have reduced threads.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61148 |
|---|---|
| Type | Fractional |
| Diameter | 1 " |
| Pitch | 8 |
| Flutes | 3 |
| Thread Length | 2-1/2 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | 7/8 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.69 lb |
