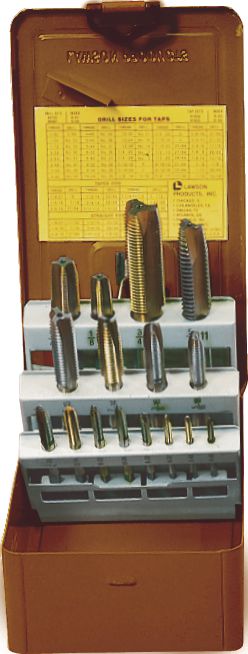

Hand Tap Kit, High Speed Steel, 4-40 to 3/4-10, 16 Pieces
(Pack of
1)
SKU:63491 Item#: 63491
• Spiral point design has a left hand flute at the poin to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 11-43
Frequently Bought Together
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
Couldn't load pickup availability
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
HSS Spiral Point Tap and Drill Kit 14Pcs
Couldn't load pickup availability
#6-1/2" 18PC HSS Taps & Cryobit Drill Bit Set
Couldn't load pickup availability
HSS Spiral Point Tap and Drill Kit 19Pcs
Couldn't load pickup availability
HSS Combination Drill-Tap 1/4-20
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 3/8-16
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-20
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Interchangeable Hex Bit Set 20Pc Torx
Couldn't load pickup availability
Small Index-Tend Pry Bar
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the poin to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63491 |
|---|---|
| Type | Spiral Point and NPT Tap Set |
| Description | USS size: 4-40 through 12-24, 1/4-20 through 1/2-13, 5/8-11 and 3/4-10, SAE size 10-32, NPT sizes 1/8-27 and 1/4-18 |
| Number of Pieces | 16 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 2.52 lb |
