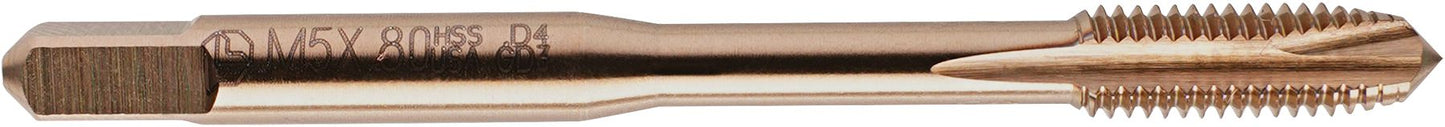

HSS Spiral Point Hand Tap M5 x 0.8
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Jobber Length Drill Bit HSS 1/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
HSS Spiral Point Hand Tap M6 x 1
Couldn't load pickup availability
HSS Spiral Point Hand Tap M8 x 1.25
Couldn't load pickup availability
HSS Spiral Point Hand Tap M10 x 1.5
Couldn't load pickup availability
HSS Combination Drill-Tap 1/4-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-32
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap 1/4-20
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63497 |
|---|---|
| Type | Metric |
| Diameter | M5 |
| Pitch | 0.8 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 2-3/8 " |
| Recommended Drill Size | No. 19 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
Product Restrictions
