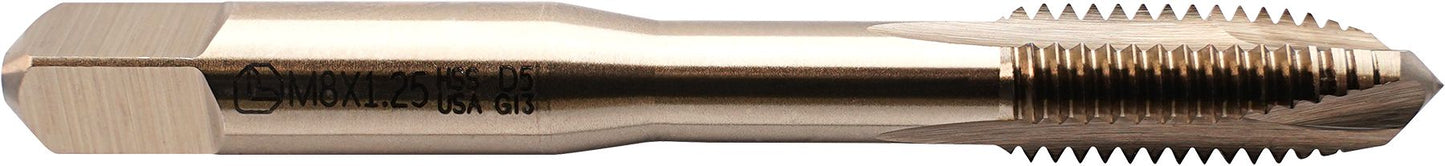

Spiral Point Hand Tap, High Speed Steel, 3 Flute, M8 x 1.25, 2-23/32" Overall Length
(Pack of
1)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Twist-On Surface Conditioning Disc 2" Maroon
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 3" Brown
Couldn't load pickup availability
Scotch-Brite Roloc Surface Conditioning Disc 2"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
HSS Spiral Point Hand Tap 9/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap 8-36
Couldn't load pickup availability

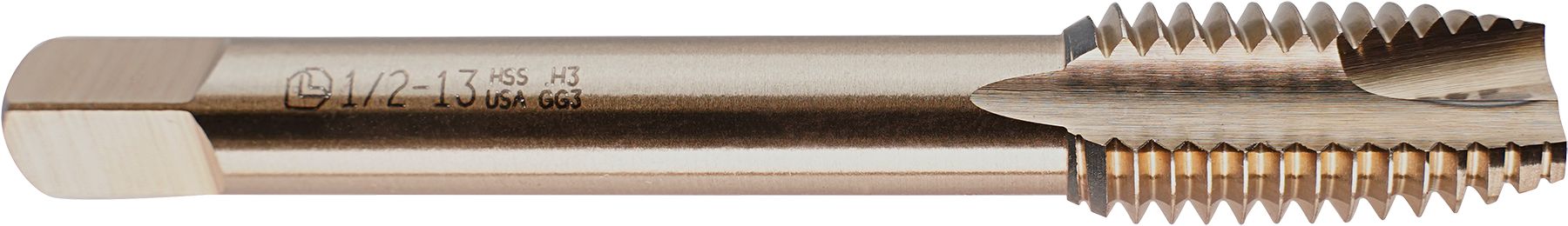

HSS Spiral Point Hand Tap 1/2-13
Couldn't load pickup availability
4-Flute HSS Plug Hand Tap M10 x 1.5
Couldn't load pickup availability
HSS Combination Drill-Tap 6-32
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M10 x 1.5
Couldn't load pickup availability
Jobber Length Drill Bit HSS 9/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63499 |
|---|---|
| Type | Metric |
| Diameter | M8 |
| Pitch | 1.25 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 2-23/32 " |
| Recommended Drill Size | 17/64 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
Product Restrictions
