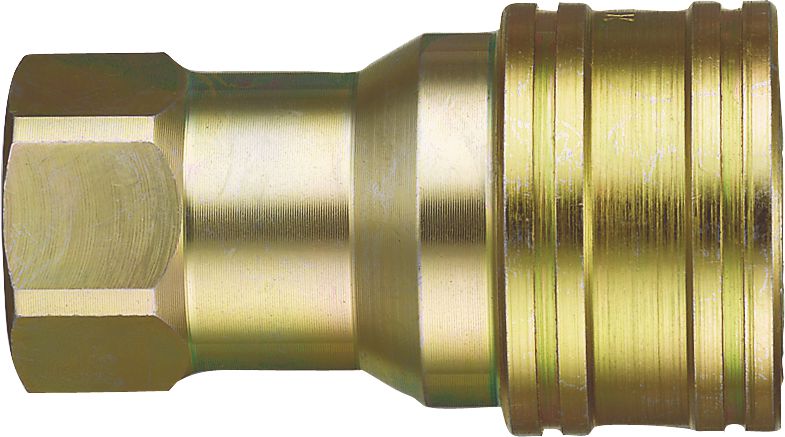

Hydraulic Quick Connect Coupler, Steel, ISO 7241 Series 'A' 1/2" x 1/2-14, Female NPTF, 2.62" Length, 4000PSI
(Pack of
1)
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability
Hydraulic Cap Nut, 1-1/16-12"(12) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/2-14
Couldn't load pickup availability
Nipple, ISO16028, 1/2" Body, 1-1/16"- 12 Female ORB, Steel
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Product Description
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Technical Specifications
| Item#: | 55902 |
|---|---|
| Hydraulic/Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'A' |
| Standards | ANSI/NFPA B93.113M-A |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 16,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 9 Balls |
| Flow | 12 gal/min |
| Length | 2.62 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1-1/4 " |
| Maximum Diameter | 1.49 " |
| Coupled Length | 3-51/64 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | No |
| Weight: | 0.55 lb |
